Introduction
O-rings are small components, but incorrect installation can lead to leakage, pressure loss and product failure.
In high-volume manufacturing, manual installation may also cause inconsistent positioning, twisting,
overstretching or surface damage.
An automatic O-ring assembly machine combines feeding, product positioning, controlled installation
and quality inspection in one production process. The most suitable machine configuration depends on
the O-ring material, dimensions, installation position, product structure and required production capacity.
This guide explains how automatic O-ring assembly works, which technologies are commonly used
and what manufacturers should evaluate before investing in a customized system.
An automatic O-ring assembly machine is a customized automation system used to install O-rings onto
or into industrial components. Depending on the application, the machine can perform:
Automatic O-ring feeding and orientation
Product loading and positioning
O-ring expansion or compression
Controlled installation into a groove
O-ring presence and position inspection
Good and rejected product separation
Production counting and data recording
Automatic systems are generally developed around the customer’s actual product rather than supplied
as a single standard machine. O-ring dimensions, material properties, groove design and product
handling requirements all influence the final equipment structure.
A complete O-ring assembly process normally includes five main stages.
O-rings are separated and continuously supplied to the installation station.
A vibratory bowl feeder is commonly used when the O-ring size, hardness and surface characteristics
allow stable feeding. The feeding system separates overlapping O-rings and transfers them along a
linear track to a defined pickup position.
For soft, sticky, very small or easily deformed O-rings, the feeding method must be evaluated carefully.
Alternative handling or separation mechanisms may be required to prevent tangling, stretching or
double feeding.
The component receiving the O-ring must be held in a stable and repeatable position.
Depending on the production process, workpieces can be loaded by:
An operator
A second vibratory bowl feeder
A conveyor system
A robotic loading unit
An upstream production machine

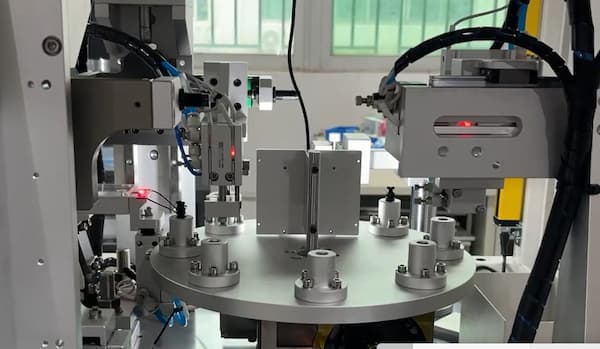

Customized fixtures locate the workpiece before assembly. Sensors can confirm product presence,
orientation and correct positioning before the installation cycle begins.

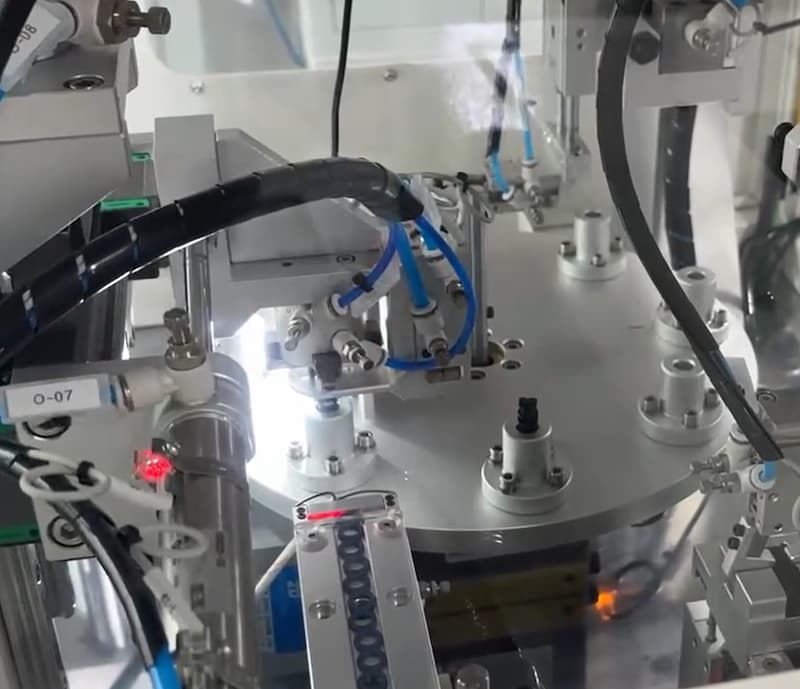

For high-volume production, a rotary indexing table or linear transfer system can move products
through multiple assembly and inspection stations.
The installation mechanism transfers the O-ring from the feeding position to the required groove.
The exact method depends on whether the O-ring is installed:
Over an external shaft
Inside a bore
Into an external groove
Into an internal groove
Between two assembled components
For external installation, the O-ring may be expanded over a guide tool and released into the groove.
Internal installation may require controlled compression and insertion tooling.
The mechanism must limit unnecessary stretching and avoid sharp contact surfaces that could cut
or scratch the O-ring. Installation tooling should also match the groove position and product geometry
to ensure the O-ring is seated correctly.
After installation, sensors or a machine vision system can verify the assembly result.
Typical inspection items include:
O-ring presence
Correct installation position
Missing or double O-rings
Twisting or uneven seating
Product orientation
Assembly completion
Visible O-ring damage
The inspection method should be selected according to the product structure. A simple sensor may
be sufficient for basic presence detection, while a vision system is more suitable when position,
orientation or multiple features must be checked.
Rejected products can be automatically separated from accepted products before they enter the
next production process.
After inspection, accepted and rejected products can be discharged into separate containers or
transferred to downstream equipment.The PLC and HMI can also record information such as:
Total production quantity
Accepted quantity
Rejected quantity
Cycle time
Alarm history
Inspection results
Machine operating status
Data export or MES integration can be included when required by the customer’s factory management
system.
Not every O-ring application can use the same installation mechanism. The first step is to identify the
installation position and product structure.
| Application | Typical Installation Method | Main Engineering Considerations |
| External shaft or connector | Expand and release over a guide tool | Stretch ratio, groove position and surface protection |
| Internal bore or groove | Compress and insert with dedicated tooling | Bore access, insertion depth and O-ring recovery |
| Plastic housing | Pick, guide and press into position | Product deformation and fixture support |
| Valve or pump component | Controlled insertion and position inspection | Sealing reliability and correct seating |
| Multi-component assembly | Install O-ring before press fitting or final assembly | Process sequence and component orientation |
O-ring material is also important. Silicone, NBR, EPDM, FKM and other elastomers have different levels
of hardness, friction and elasticity. These properties affect feeding stability, tooling design and allowable
deformation during installation.Sample testing is therefore recommended before the final machine structure
is confirmed.
Vibratory bowl feeders separate, orient and continuously supply O-rings or workpieces. Bowl geometry and
track design are customized according to the component.
Product-specific tooling controls how the O-ring is expanded, compressed, guided and released. Smooth
contact surfaces help reduce the risk of scratching or cutting the sealing material.
Fixtures support the product and maintain alignment during assembly. Quick-change tooling can be
considered when one machine needs to process multiple product models.
Multi-station systems allow feeding, assembly, inspection and unloading operations to run at different stations.
The layout is selected according to required cycle time, available factory space and process complexity.
Machine vision can inspect O-ring presence, position and assembly completion. The camera, lighting and
inspection angle must be selected according to product color, surface reflection and groove visibility.
A PLC controls the machine sequence, safety signals, sensors and actuators. The HMI allows operators to
select product recipes, adjust authorized parameters, view alarms and monitor production status.
A missing O-ring may be caused by feeding interruption, pickup failure or an empty installation tool.
Presence sensors and post-assembly vision inspection can detect missing parts before discharge.
Twisting may occur when the O-ring is transferred unevenly or released before reaching the correct position.
A properly designed guide tool and controlled release movement help the O-ring enter the groove evenly.
Overstretching can permanently deform or weaken the O-ring.
The installation tool should limit expansion according to the O-ring dimensions, material and product geometry.
Sharp edges, rough tooling surfaces or excessive contact force may scratch or cut the O-ring.Tool surfaces
and product edges should be reviewed during sample testing. The installation path should avoid unnecessary
friction and impact.
Variations in product positioning can cause the O-ring to be installed beside the intended groove.
Customized fixtures, positioning sensors and vision inspection help maintain consistent alignment.
Two overlapping O-rings may enter the installation mechanism if the feeding system does not separate
them correctly.bFeeding controls and detection sensors can identify abnormal thickness or double feeding.
Automation is particularly suitable when:
Production volume is high or increasing
Manual installation cannot meet the required cycle time
O-ring placement quality varies between operators
Missing or twisted O-rings create leakage risks
Every product requires automatic inspection
Labor availability or cost is becoming a concern
Production data and traceability are required
The O-ring assembly process must connect with upstream or downstream equipment
For lower-volume production or frequent model changes, a compact semi-automatic machine may be more
economical than a fully automatic production line.
The appropriate automation level should be based on production quantity, quality requirements, changeover
frequency and expected return on investment.
Typical applications include:
Connectors
Valves
Sensors
Filter components
Fuel system components
Brake system components
Pump and fluid-control parts
Automatic O-ring installation can be used for:
Fluid-control components
Diagnostic product components
Sealed plastic housings
Filters and connectors
Material handling, cleanliness and validation requirements should be confirmed for each medical application.
Applications include:
Waterproof connectors
Sensor housings
Sealed electronic enclosures
Cable and terminal components
Common products include:
Pneumatic valves
Hydraulic fittings
Pump components
Check valves
Water filtration components
Fluid-control devices
To evaluate an automation project accurately, the equipment manufacturer should receive:
Product 2D or 3D drawings
O-ring dimensions, material and hardness
Product and O-ring samples
Internal or external installation position
Required production capacity or cycle time
Current manual assembly process or video
Number of product models
Inspection requirements
Acceptable defect criteria
Upstream and downstream equipment information
Factory power supply and compressed-air requirements
Required control, data export or MES functions
Final machine installation country
These details help determine the feeding method, installation mechanism, inspection system, machine
layout and level of automation.
TIMEAST develops customized automatic and semi-automatic O-ring assembly machines for automotive,
filtration, fluid-control, electronics and other industrial products.
A complete system can integrate:
O-ring and product vibratory bowl feeding
Customized positioning fixtures
Rotary indexing assembly
Servo or pneumatic installation mechanisms
PLC and HMI control
Keyence or equivalent vision inspection
Automatic rejection and sorting
Safety guarding and interlocks
Production data recording
Integration with existing production lines
The final solution is designed according to the customer’s product drawings, samples, production capacity
and inspection requirements.Learn more about our Custom Automatic O-Ring Assembly Machine.
You can also view a completed Automatic O-Ring and Filter Component Assembly Machine Case Study
featuring dual vibratory bowl feeders, rotary indexing assembly, vision inspection and automatic sorting.
An automatic O-ring assembly machine feeds, positions and installs O-rings onto or into industrial components.
It can also integrate inspection, rejected-product separation and production recording.
Yes, but the level of flexibility depends on the size difference, product structure and feeding method. Different
models may require changeable fixtures, feeding tracks or installation tooling.
The machine uses product-specific guide tools, controlled movement and smooth contact surfaces. Sample testing
is necessary to confirm the allowable expansion, compression and installation path.
Yes. Sensors can perform basic presence detection, while a vision system can inspect O-ring position, orientation
and assembly completion when the groove is visible.
No. Feeding performance depends on O-ring size, material, hardness, surface friction and tendency to overlap or stick.
The feeding method should be confirmed through sample testing.
Yes. The system can be designed to receive products from upstream equipment and transfer assembled parts to
downstream testing, welding, marking or packaging stations.
Most O-ring assembly systems are customized because product geometry, groove position, O-ring properties,
cycle time and inspection requirements differ between projects.
Planning to automate an O-ring installation process?
Send TIMEAST your product drawings, O-ring specifications, sample parts, required production capacity
and current assembly video. Our engineering team will evaluate the feeding, installation and inspection
process and recommend a suitable automation solution.
