Automated Quality Inspection in Custom Industrial Automation Systems

Brief

Automated quality inspection is most effective when it is designed as part of the production process—

not simply added as a standalone camera station.

In a custom industrial automation system, machine vision, sensors, part handling, fixtures, PLC control

and automatic sorting work together. The inspection result can determine whether a product continues to

the next process, is automatically rejected, or triggers an alarm for operator review.

TIMEAST designs and builds custom industrial automation equipment with integrated quality inspection

for assembly, ultrasonic welding and component-handling applications.

The inspection method is selected according to the actual product, defect criteria, production process and

required cycle time.Depending on the application, the system may integrate machine vision, presence sensors,

dimensional checks, process monitoring and automatic OK/NG handling.

What Is Automated Quality Inspection?

Automated quality inspection uses cameras, sensors or other inspection devices to evaluate products

automatically during manufacturing.Unlike a standalone inspection operation, an integrated inspection

system communicates directly with the machine PLC and becomes part of the production sequence.

A typical automated process may look like:

Automatic Feeding →Positioning→Inspection →Assembly or Welding→Final Inspection →OK/NG Sorting

Inspection can be performed at different stages depending on the process:

• Before assembly

• After component installation

• Before ultrasonic welding

• After welding

• Before marking

• Before product discharge

• At multiple stations within the same automation system

The objective is not simply to capture an image. The inspection system must provide a reliable result that

the automation equipment can use to make the next production decision.

What Can an Automated Vision Inspection System Check?

The exact inspection criteria depend on product geometry, defect size, visibility and required accuracy.

Common applications include:

Component Presence Detection

The system can verify whether required components are present before the product proceeds to the next process.

Typical examples include:

• O-rings

• Plastic inserts

• Felt or filter components

• Membranes

• Fasteners

• Labels or other assembled parts

If a required component is missing, the PLC can prevent the next production step or automatically reject the product.

Position and Orientation Inspection

Machine vision can check whether a component is:

• Correctly oriented

• Properly positioned

• Correctly aligned

• Seated in the required location

• Loaded in the correct direction

This is useful before assembly, welding or other irreversible manufacturing operations.

Assembly Completion Verification

After an automated assembly operation, vision inspection can verify whether the expected parts have been installed.

This helps prevent incomplete products from continuing into downstream processes.

Marking and Identification Inspection

Depending on the application, machine vision can verify:

• Printed codes

• Laser markings

• Labels

• Product identification

• Presence of required markings

• Marking position

• Visible Surface Inspection

With appropriate cameras, lenses and lighting, machine vision can detect certain visible conditions such as:

• Missing features

• Obvious surface defects

• Incorrect color

• Position deviations

• Assembly abnormalities

The actual detection capability should always be validated using representative OK and NG samples.

Dimensional and Position Measurement

For suitable applications, a vision system can also measure selected dimensions, distances or positions.

Required accuracy, field of view, camera resolution and product tolerance must be evaluated before

the inspection method is confirmed.

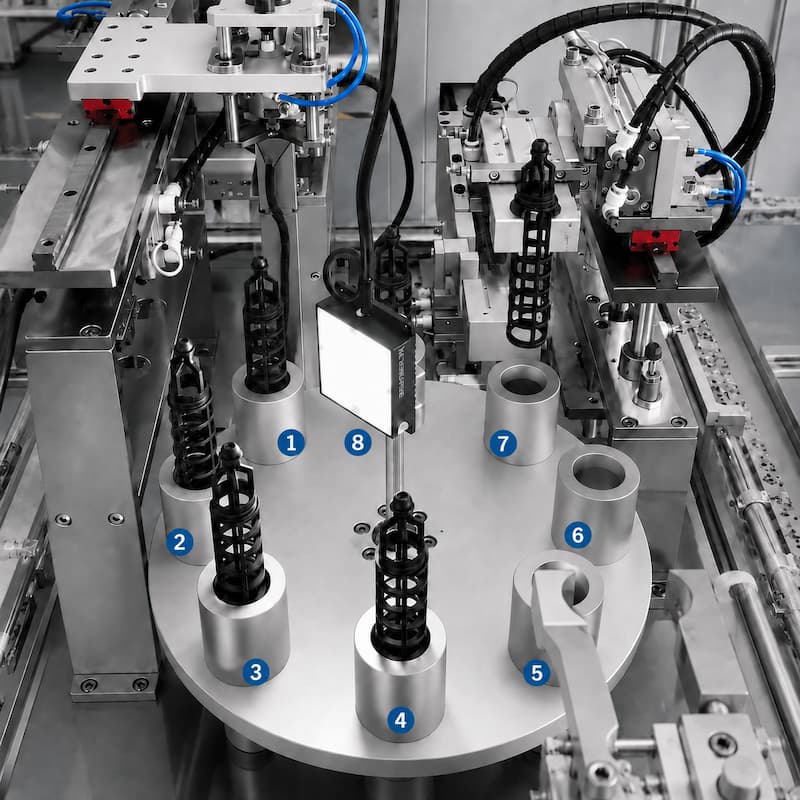

How Vision Inspection Is Integrated into Custom Automation

Reliable automated inspection depends on much more than camera selection.

The mechanical system, lighting, product positioning, PLC logic and reject mechanism must all be engineered together.

1. Product Feeding and Handling

Before a product can be inspected, it must arrive at the inspection station in a controlled and repeatable condition.

Depending on the project, TIMEAST can integrate:

• Vibratory bowl feeders

• Linear feeders

• Conveyor systems

• Pick-and-place mechanisms

• Rotary indexing tables

• Servo handling systems

• Pneumatic transfer mechanisms

The appropriate handling method depends on part geometry, production speed and the manufacturing sequence.

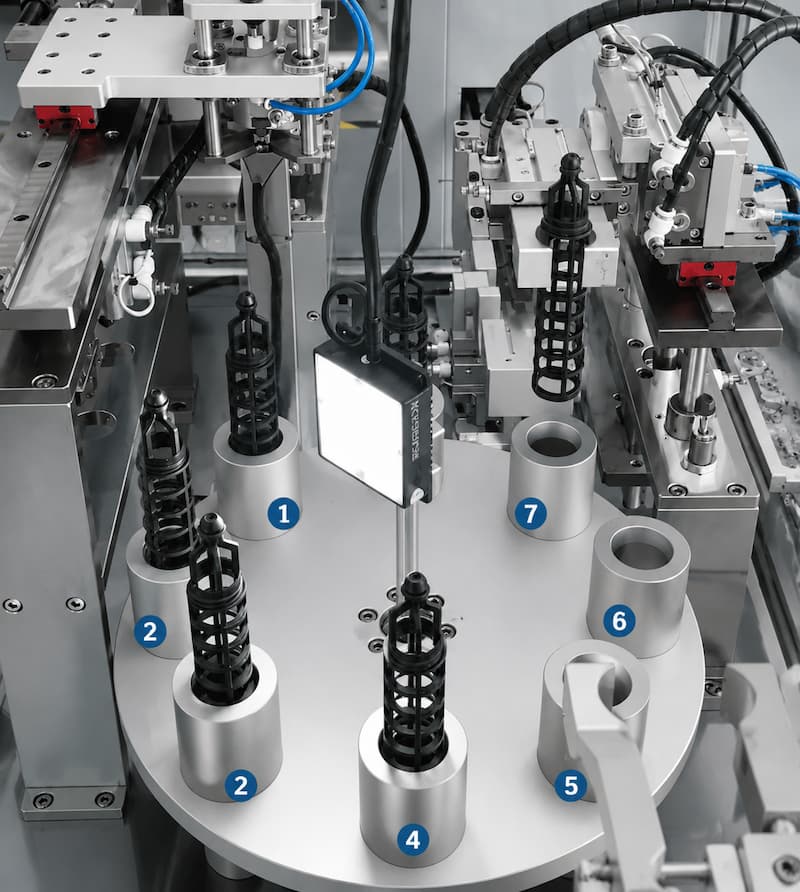

2. Stable Positioning and Custom Fixtures

Machine vision cannot compensate for poor product positioning in every application.

Custom fixtures and positioning mechanisms help maintain a stable relationship between the product, camera

and inspection area.The fixture may also support subsequent operations such as:

• Assembly

• Press fitting

• Ultrasonic welding

• Marking

• Leak testing

• Unloading

Designing the inspection station together with the fixture can improve process repeatability and simplify the vision task.

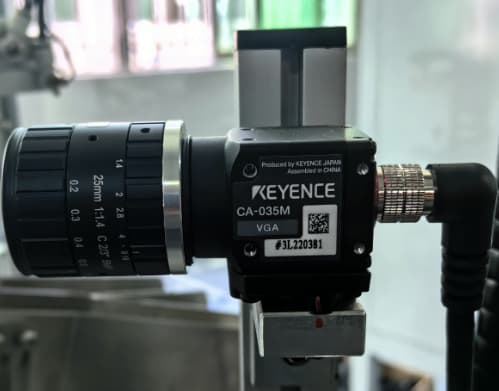

3. Camera, Lens and Lighting Selection

The inspection hardware should be selected according to the actual feature being inspected.

Important factors include:

• Product size

• Inspection area

• Defect size

• Required resolution

• Surface color

• Reflectivity

• Product variation

• Camera working distance

• Available machine space

• Required cycle time

Lighting is especially important for dark, reflective, transparent or low-contrast components.

A higher-resolution camera alone does not guarantee reliable inspection if the inspected feature cannot be presented

clearly and consistently.

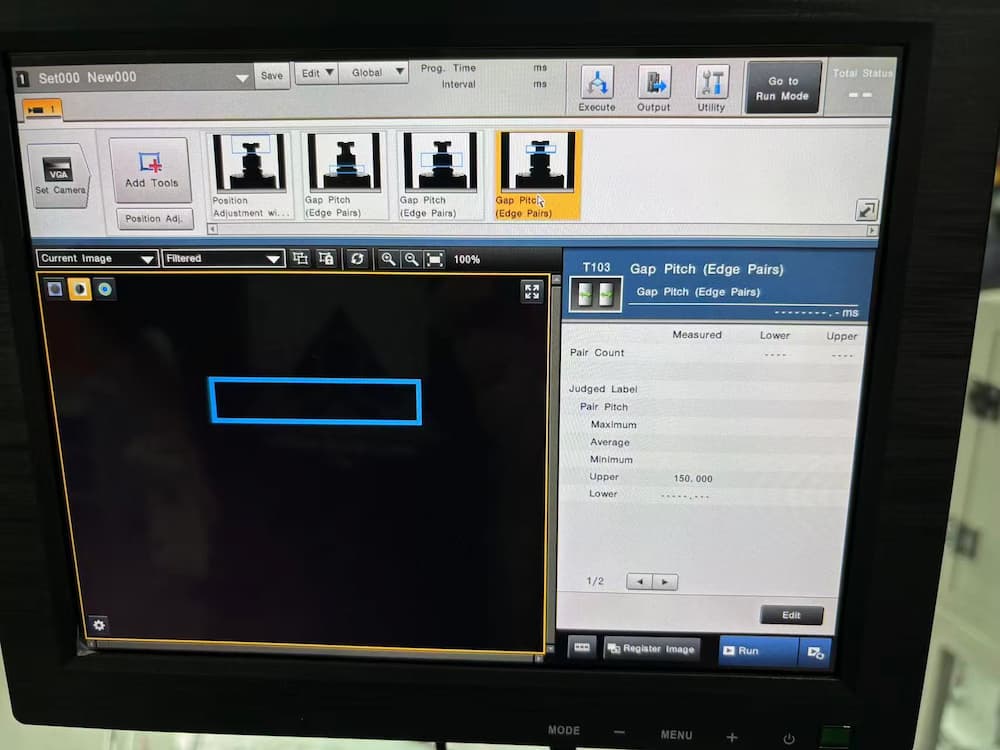

4. Inspection Logic and PLC Communication

After the image or sensor signal is evaluated, the inspection result is communicated to the PLC.

The machine can then respond automatically.

For an OK product, the system may:

• Continue assembly

• Start ultrasonic welding

• Transfer the part to the next station

• Perform marking

• Discharge the product to the OK area

For an NG product, the system may:

• Skip the next operation

• Reject the product automatically

• Stop the cycle if required

• Trigger an alarm

• Record the rejection result

This integration makes inspection part of machine control rather than a separate manual quality-checking step.

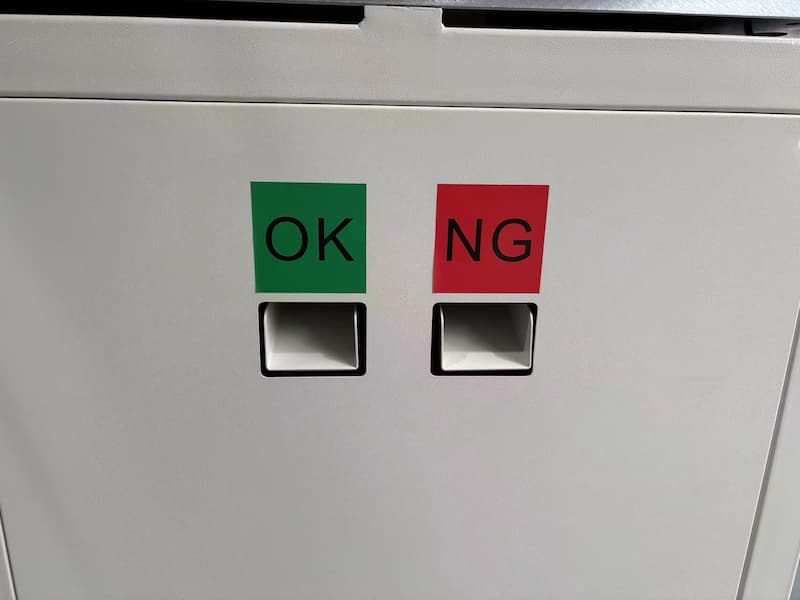

Automatic OK/NG Sorting

Inspection becomes much more useful when the machine can automatically act on the result.

After inspection, qualified and rejected products can be physically separated without manual sorting.

Depending on the machine design, TIMEAST can integrate:

• Pneumatic rejection

• Pick-and-place rejection

• Rotary-table separation

• Conveyor diversion

• Separate OK and NG discharge areas

This helps prevent rejected parts from being mixed with accepted products and allows the inspection process

to operate continuously as part of the production cycle.

Where Should Inspection Be Located in an Automation Process?

The correct inspection position depends on what needs to be prevented or verified.

Before the Main Process

Pre-process inspection can confirm:

• Correct component presence

• Product orientation

• Loading position

• Previous assembly completion

If the product fails inspection, the machine can prevent an unnecessary assembly or welding cycle.

After the Main Process

Post-process inspection can check:

• Assembly completion

• Component position

• Visible manufacturing results

• Marking presence

• Selected dimensional features

The product can then be classified as OK or NG before discharge.

Multiple Inspection Stations

More complex automation equipment may require several inspection points.

For example:

Feeding → Presence Check → Assembly → Position Check → Welding → Final Inspection → Sorting

This allows quality conditions to be verified at the most appropriate stage instead of relying on a single final inspection.

Automated Quality Inspection in Assembly Automation

Machine vision and sensors can be integrated into customized assembly equipment to verify component presence,

orientation, position and assembly completion.

A complete assembly machine may combine automatic feeding, positioning, installation, inspection and sorting

within one production process.

One example is O-ring assembly, where inspection can be used after installation to confirm whether the sealing

component is present and correctly positioned before the product is discharged.

Related application guide: How Does an Automatic O-Ring Assembly Machine Work?

Vision Inspection in Ultrasonic Welding Automation

Vision inspection can also be integrated before an ultrasonic welding station.

For example, the system can verify whether:

• The product is present

• Previous assembly operations are complete

• Components are correctly positioned

• The workpiece is ready for the welding cycle

Only products that meet the predefined conditions are released for ultrasonic welding.

This is particularly useful when ultrasonic welding is one operation within a larger automatic production line.

See a real TIMEAST project: Automatic Loading and Unloading Ultrasonic Welding Line with Vision Inspection

Machine Vision Does Not Replace Every Quality Test

Machine vision is a powerful inspection technology, but it should not be treated as a universal quality test.

A camera is well suited to evaluating visible characteristics such as presence, position, orientation, markings and

certain dimensional or surface features.

However, some product requirements require different testing methods.

For example:

• Weld strength may require tensile, peel or destructive testing

• Airtightness requires an appropriate leak-testing method

• Press-fit quality may require force and displacement monitoring

• Electrical performance requires electrical testing

• Internal defects may require inspection technologies other than conventional machine vision

For this reason, the inspection method should be selected according to the actual quality requirement.

Where necessary, vision inspection can be combined with sensors, process monitoring or dedicated test stations

within the same automation system.

How TIMEAST Develops an Automation System with Integrated Inspection

A custom automation project normally starts with the product and process rather than with the camera.

The engineering process typically includes:

1. Review the Product and Production Process

Understand the current manufacturing method, production sequence and automation objective.

2. Define OK and NG Criteria

Identify exactly what the system must inspect and what conditions should be classified as unacceptable.

3. Evaluate Samples

Representative good and defective samples help determine whether the required characteristics can be detected reliably.

4. Design Product Handling and Fixtures

The feeding, transfer and positioning system is developed around the actual parts and required cycle time.

5. Select the Inspection Method

Depending on the requirement, the solution may use machine vision, sensors or other inspection technologies.

6. Integrate PLC Control and OK/NG Handling

Inspection results are incorporated into the machine sequence so the equipment can automatically continue, reject, stop or alarm.

7. Build and Validate the Complete System

The machine is tested using actual production parts before the final automation process is confirmed.

Typical Applications

TIMEAST can integrate automated inspection into customized manufacturing equipment for applications such as:

Assembly Automation

Inspection of component presence, orientation, positioning and assembly completion.

Ultrasonic Welding Automation

Pre-weld product verification and inspection interlocking with the ultrasonic welding process.

Automatic Feeding and Handling

Verification of part orientation, correct loading and product presence before transfer.

O-Ring and Seal Assembly

Inspection after automated installation before product discharge or downstream processing.

Marking and Identification

Verification of labels, printed information or laser markings.

Automatic OK/NG Sorting

Automatic classification and separation of accepted and rejected products based on inspection results.

What Information Is Needed for a Custom Inspection Automation Project?

1. To evaluate a new automation project, it is helpful to provide:

2. Product 2D or 3D drawings

3. Product photos

4. Actual product samples

5. Representative OK and NG samples

6. Description or video of the current production process

7. Required inspection items

8. Clear OK/NG acceptance criteria

9. Required production capacity or cycle time

10. Number of product models

11. Upstream and downstream equipment information

12. Available machine installation space

13. Required production data or traceability functions

These details help determine whether the inspection is feasible and how it should be integrated into the complete

automation system.

Custom Industrial Automation with Integrated Quality Inspection

TIMEAST develops customized automation equipment around the customer's actual product and manufacturing process.

Depending on the application, one system can integrate:

• Automatic feeding

• Product positioning

• Pick-and-place handling

• Assembly

• Ultrasonic welding

• Machine vision inspection

• Sensors

• Automatic OK/NG sorting

• PLC and HMI control

• Conveyor integration

• Production data recording

The final machine configuration depends on product geometry, manufacturing sequence, quality requirements,

required cycle time and factory integration conditions.

If you are planning to automate an assembly, ultrasonic welding or inspection process, send us your product drawings,

samples, inspection requirements and target production capacity.

TIMEAST can evaluate the complete process and develop a customized industrial automation solution with integrated

quality inspection.

Discuss Your Automation Project →

Frequently Asked Questions

What is automated quality inspection?

Automated quality inspection uses machine vision, sensors or other inspection devices to check defined product

characteristics automatically during manufacturing. In an integrated automation system, inspection results can

be used directly by the PLC to control the next production step.

What can machine vision inspect?

Typical applications include component presence, orientation, position, assembly completion, markings, selected

dimensions and certain visible defects. Actual capability dhttps://www.sztimeast.com/Custom-Automation-Systems.htmlepends on product geometry, contrast, defect size and

required accuracy.

Can machine vision inspect every product in production?

In many applications, inline inspection can be designed to check every product. Whether this is practical depends

on the required inspection task, cycle time and system configuration.

Can defective products be rejected automatically?

Yes. When an NG result is detected, the PLC can control a pneumatic mechanism, pick-and-place unit, rotary table

or conveyor system to separate the rejected product automatically.

Can vision inspection verify ultrasonic weld strength?

Not directly. Machine vision can inspect visible conditions, part position and assembly status, but mechanical weld

strength normally requires appropriate process validation or physical testing.

Can automated inspection be integrated into assembly equipment?

Yes. Inspection can be integrated with automatic feeding, positioning, assembly, ultrasonic welding, marking, unloading

and OK/NG sorting as part of a complete customized automation system.

Does TIMEAST supply standalone vision cameras?

TIMEAST's primary focus is custom industrial automation equipment with integrated inspection, rather than supplying

standalone vision components. The inspection system is selected and configured according to the complete manufacturing

process.
