Automatic O-Ring and Filter Component Assembly Machine with Vision Inspection

Project Overview

A customer required a fully automated assembly solution for O-rings and plastic filter components.

The production process needed to ensure consistent assembly quality, eliminate missing components,

and automatically separate defective products before packaging.

To meet these requirements, TIMEAST developed a fully automatic assembly and inspection system

integrating feeding, assembly, vision verification, and OK/NG sorting into a single production line.

The machine operates continuously without manual intervention during normal production, significantly

improving productivity and product consistency.

Customer Challenges

Before automation, the customer faced several production issues:

• Manual O-ring installation was labor-intensive.

• Incorrect O-ring positioning occasionally occurred.

• Missing components could not always be detected.

• Product quality relied heavily on operator experience.

• Manual inspection reduced overall production efficiency.

The customer required a solution capable of automatic assembly and 100% quality verification.

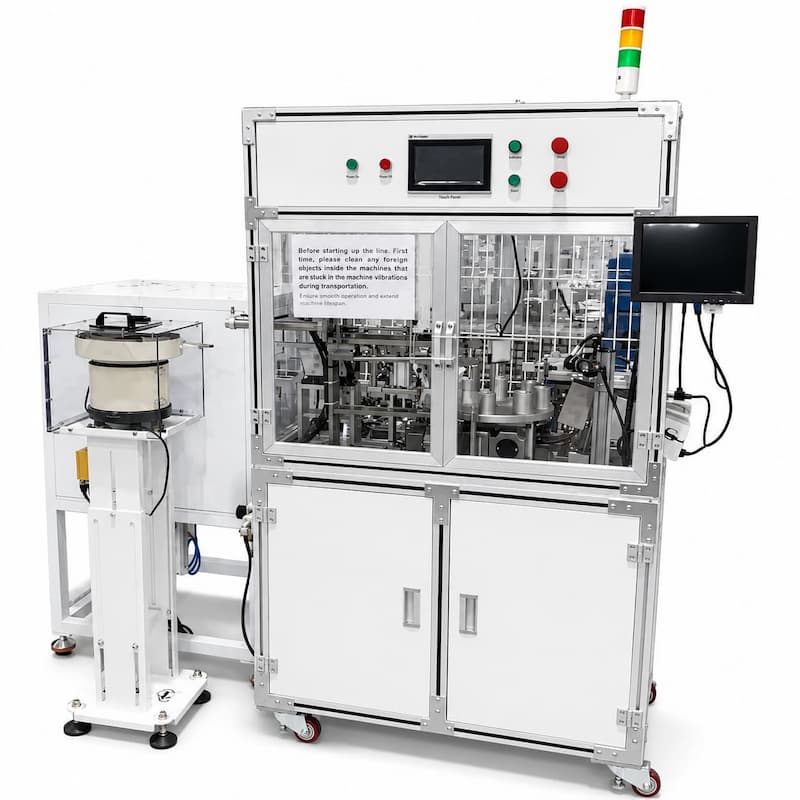

Our Solution

TIMEAST designed a fully automatic assembly system utilizing dual vibratory bowl feeders,

rotary indexing assembly, vision inspection, and automatic sorting.

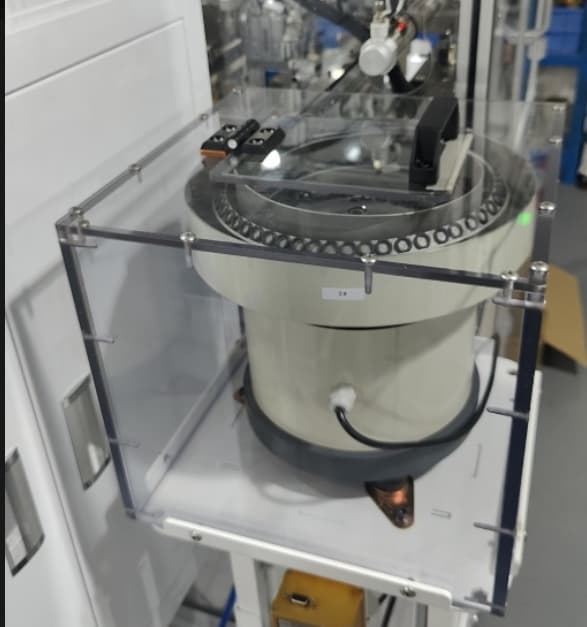

Automatic Feeding

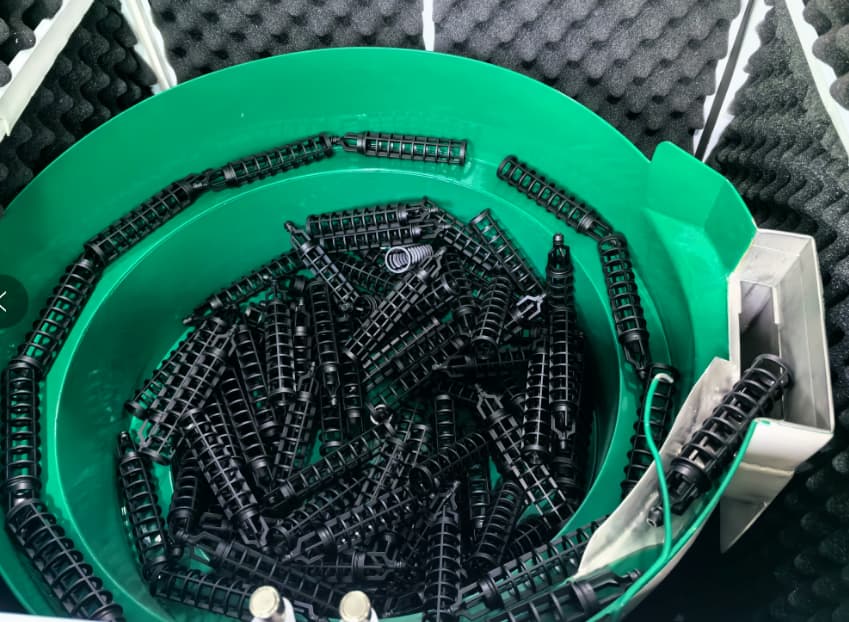

O-rings and plastic filter components are automatically supplied through independent vibratory bowl feeders.

Linear feeding tracks transfer parts to designated pick-up positions, ensuring stable and continuous production.

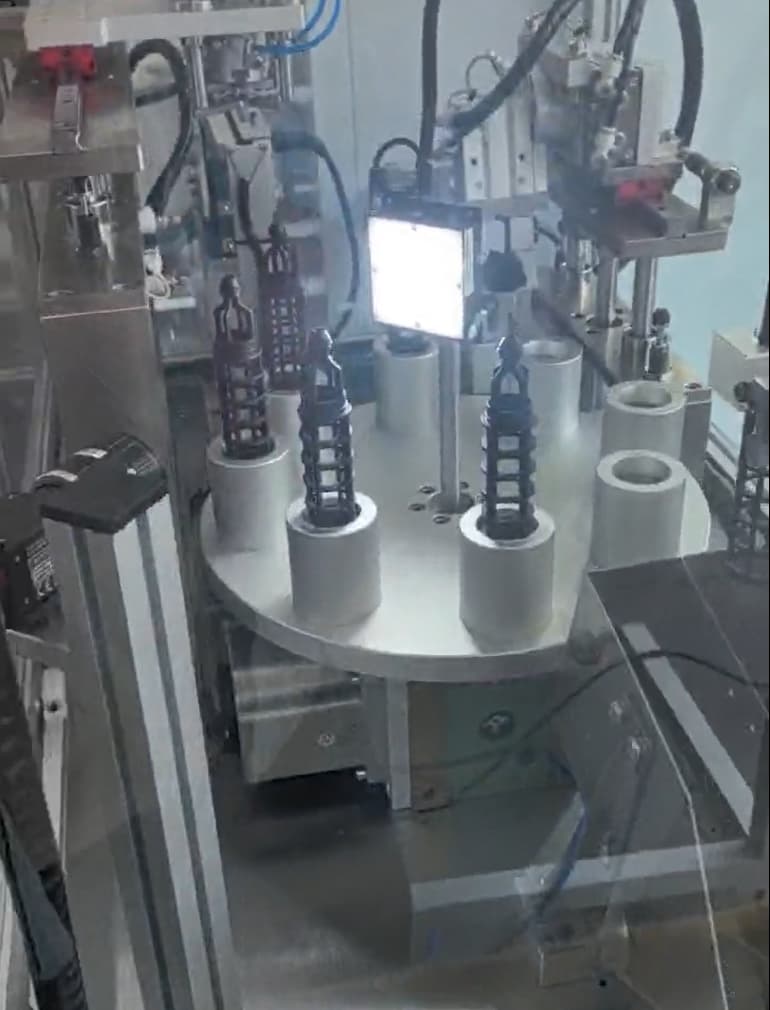

Rotary Indexing Assembly

A 8-stations rotary indexing table transports components through each assembly stage.

Automatic pick-and-place mechanisms accurately load components onto fixtures.

The assembly station performs precision press-fit assembly between the O-ring and filter component.

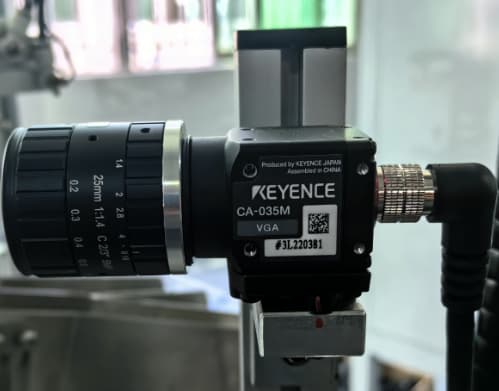

Vision Inspection System

A Keyence vision alignment system inspects every assembled product.

Inspection items include:

• O-ring presence

• O-ring position

• Component orientation

• Assembly completion

• Product status verification

This ensures that every product is inspected before discharge.

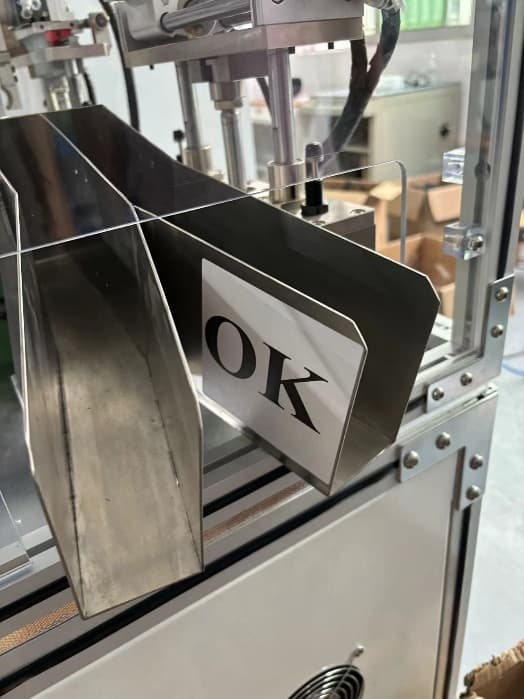

Automatic OK / NG Sorting

Based on the inspection results:

• Qualified products are automatically discharged into the OK collection bin.

• Defective products are automatically directed to the NG collection bin.

This eliminates manual sorting and improves production reliability.

Machine Configuration

The equipment is built using globally recognized industrial components.

These components provide long-term reliability and ease of maintenance.

Safety Features

The machine incorporates multiple safety measures to ensure safe operation:

• Interlocked safety doors

• Emergency stop buttons

• Three-color tower light

• Audible alarm system

• PLC-controlled safety monitoring

These features help protect operators while maintaining production efficiency.

Video Demonstration

The following video demonstrates the complete automatic assembly process, including feeding,

assembly, vision inspection, and automatic sorting.

Benefits Achieved

After implementation, the customer achieved:

• Improved Product Quality

  100% vision inspection prevents defective products from reaching downstream processes.

• Reduced Labor Requirements

  The fully automated process minimizes operator involvement and labor costs.

• Increased Production Efficiency

  Continuous automatic operation significantly improves throughput compared with manual assembly.

• Stable Assembly Performance

  Precision assembly tooling ensures repeatable and consistent assembly quality.

• Automatic Quality Control

  The integrated vision system provides real-time inspection and automatic defect separation.

Typical Applications

This automation solution can be adapted for:

• Filter components

• O-ring assembly products

• Fluid control devices

• Check valves

• Water filtration components

• Automotive sealing products

• Medical plastic assemblies

• Precision plastic component assembly

FAQ

Q1. Why is vision inspection important for O-ring assembly?

A: Vision inspection can automatically detect missing, misplaced, or incorrectly assembled

      O-rings, ensuring product quality before shipment.

Q2. Can the machine handle different product sizes?

A: Yes. Feeding systems, fixtures, and assembly tooling can be customized according to product

      dimensions and production requirements.Similar customization is also available for our

      automatic O-ring assembly machine platforms.

Q3. Can production parameters be adjusted?

A:  Yes. Operators can view and modify production parameters directly through the Allen-Bradley HMI.

Q4. Is the machine suitable for continuous production?

A:  Yes. Industrial-grade components and automated operation make the machine suitable for long-term production environments.

Q5. Can the system be integrated into existing production lines?

A:   Yes. The machine can be customized for integration with upstream and downstream automation equipment.
