Custom Automatic O-Ring Assembly Machine for Automotive Filter Components – Case Study

Project Overview

In collaboration with a top U.S. automotive parts supplier, TIMEAST developed

a custom automatic O-ring assembly system to meet the specific demands of

automotive filter component production. The system was designed to improve

production efficiency, ensure consistent assembly quality, and automate critical

 processes such as feeding, O-ring installation, inspection, and sorting.

The solution provided the client with a fully integrated system that not only

optimized their manufacturing line but also ensured a high level of precision

and reduced the risk of defects.

Customer Challenges

The customer faced several challenges in their existing production process:

• Manual assembly leading to inconsistent O-ring placement

• High labor costs due to manual handling

• Lack of reliable inspection and quality control measures

• Difficulty in achieving fast and efficient assembly for high-volume production

Our Solution

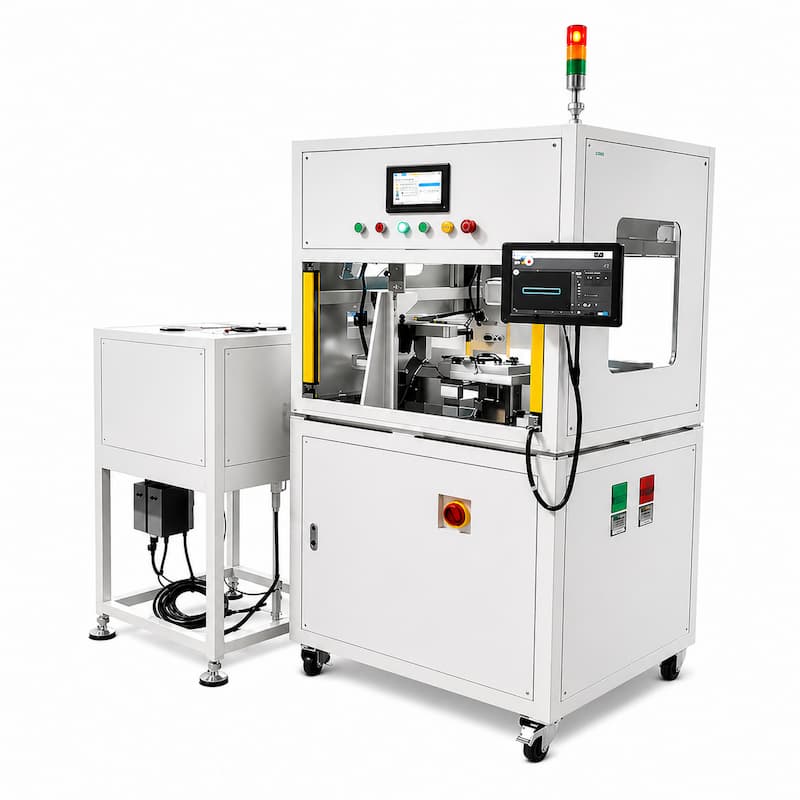

TIMEAST provided a custom automated O-ring assembly machine, featuring the following:

• Automatic Feeding System

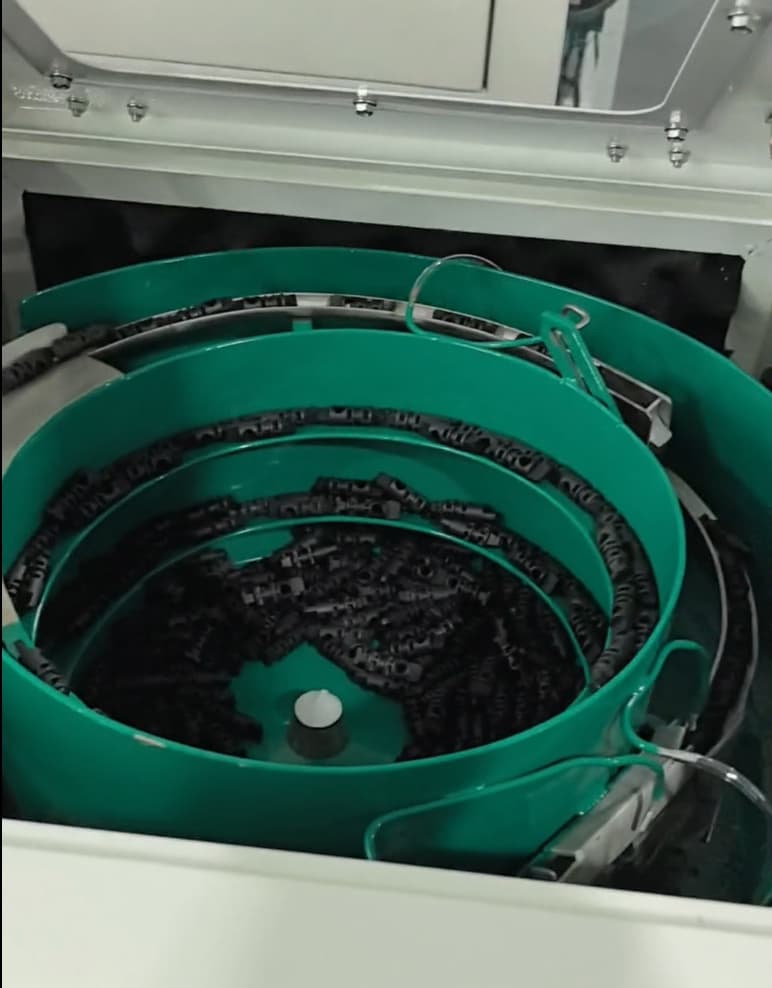

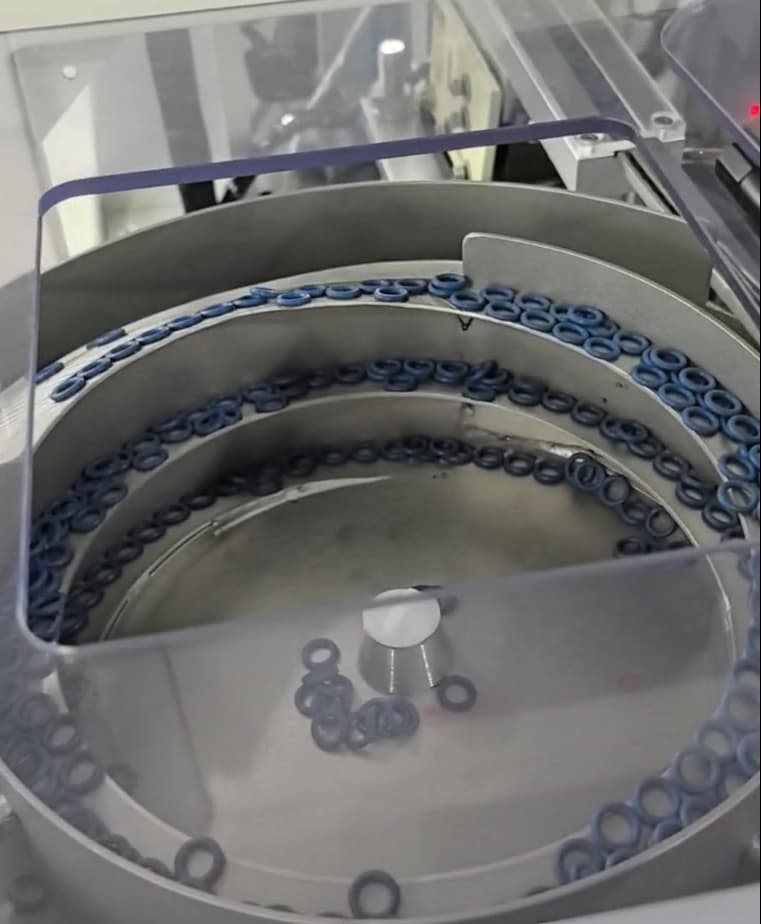

  Vibratory bowl feeders ensure stable supply of O-rings and filter components.

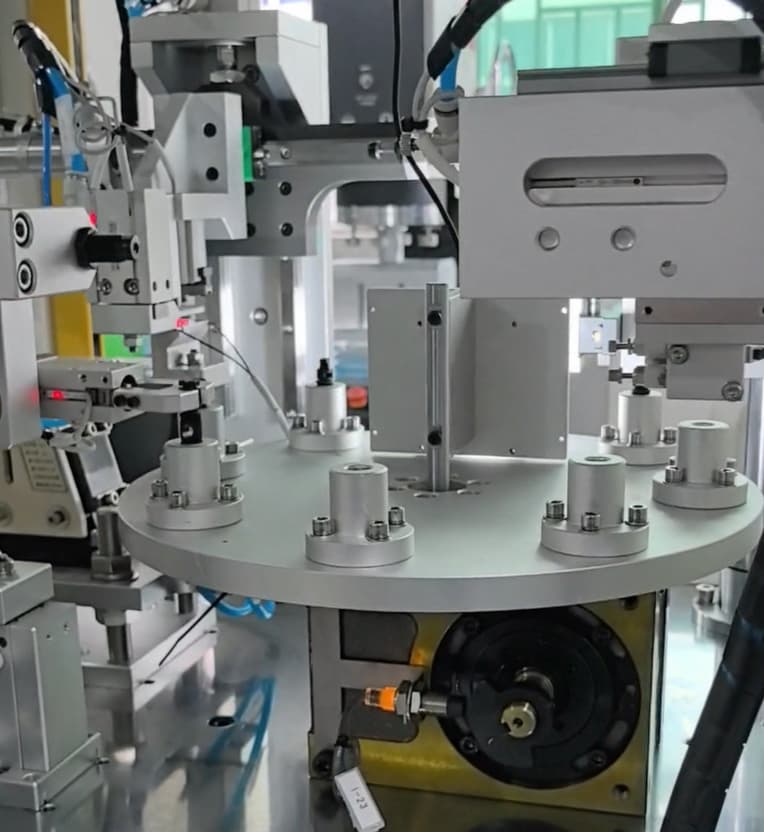

• 8-Station Rotary Indexing Table

   Increases cycle time and production efficiency while ensuring precise assembly.

• OK/NG Detection System

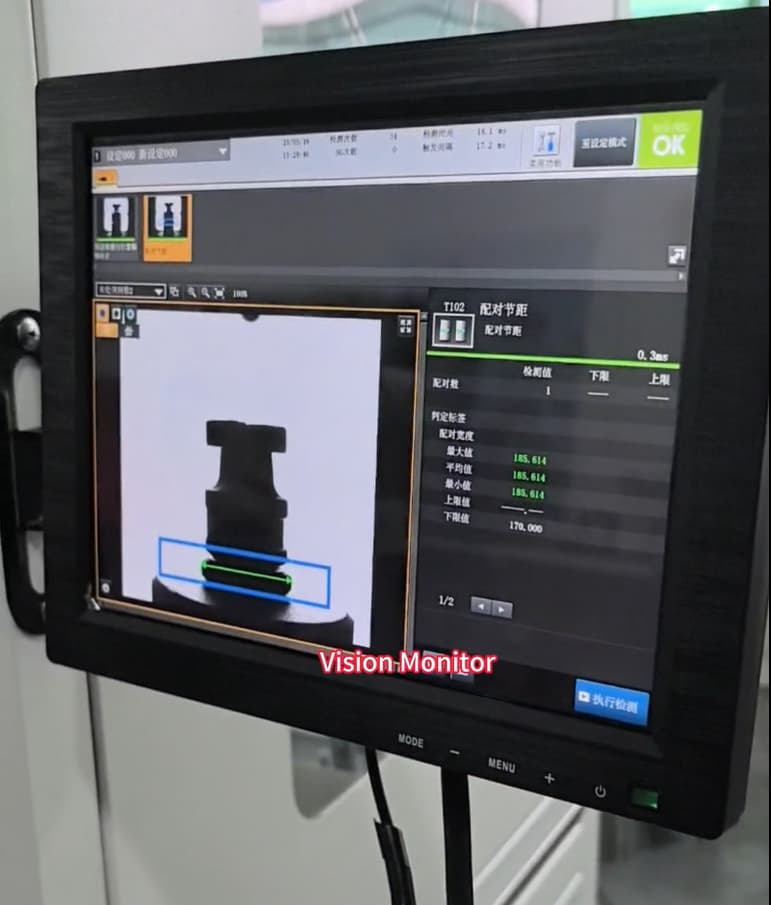

  Integrated Keyence inspection system automatically identifies defects and sorts parts.

• Custom Design

  Tailored to the customer's exact production requirements, ensuring a seamless integration

  with existing systems.

This fully automated system enhanced both the speed and quality of the assembly process,

providing a significant return on investment for the customer.

Key Components & Technologies

The O-ring assembly system includes components from globally recognized brands to

ensure high performance and reliability:

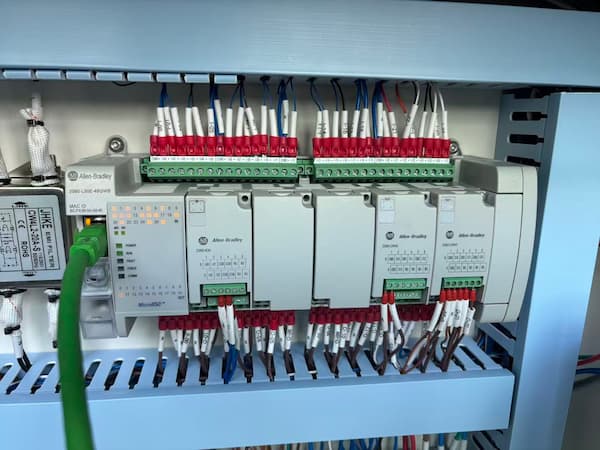

• PLC & HMI: Allen Bradley for seamless control and monitoring

• Pneumatic Components: SMC for precise air control and consistent operation

• Electrical Components: Schneider for reliable power distribution

• Inspection System: Keyence for real-time quality control and defect detection

Working Process

The system’s process flow is optimized for efficiency:

1. Automatic Feeding

   Components are fed automatically via vibratory bowls into the assembly station.

2. O-Ring Assembly

   The O-rings are placed onto the filter components with high precision.

3. Inspection

   Keyence inspection system checks assembly quality in real-time.

4. Sorting

   OK parts are sent to the output, while NG parts are rejected automatically.

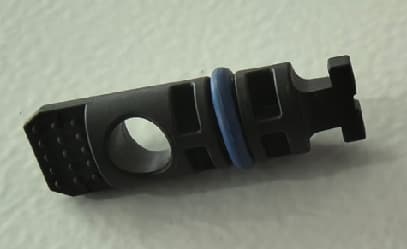

5. Finished Product

   Final products are discharged for further processing.

Project Results

After installing the automatic O-ring assembly system, the customer experienced:

• Increased Production Efficiency

  Cycle times were reduced by 30%, leading to higher throughput.

• Improved Product Quality

  Consistent high-quality O-ring placement and assembly.

• Reduced Labor Costs

  Automation reduced reliance on manual labor.

• Reliable Inspection and Sorting

  High-precision inspection and defect-free sorting ensured high-quality outputs.

• Seamless Integration

  The system integrated smoothly into the client’s existing production line.

Safety Features

The system was built with essential safety features to ensure compliance with industry standards:

Emergency Stop (E-Stop) Button: Immediate shutdown in case of emergency.

Safety Light Curtain: Ensures operator protection during machine operation.

Door Interlock System: Stops machine operation when the door is opened.

Tower Light and Buzzer: Indicates the machine’s operational status (OK/NG).

Alarm Display on HMI: Real-time status alerts and warnings.

Customer Feedback

"TIMEAST’s custom O-ring assembly machine significantly improved our production efficiency.

The automated system has reduced labor costs while providing us with the precision we need for

automotive filter components. We are very satisfied with the solution and the seamless integration

 into our existing production line."

— Ariel Ventura, Project Manager at [Trico Products]
