How to Choose the Right Ultrasonic Welding Machine for Your Application

Introduction

Buying an ultrasonic welding machine is a long-term investment rather than a simple

equipment purchase. The right system influences product quality, manufacturing efficiency,

maintenance cost and future production expansion. Many manufacturers compare only

price or power output, but successful projects depend on matching the machine to the product

and production process. This guide explains how engineers evaluate ultrasonic welding

applications and provides a practical roadmap for selecting the right solution.

Why Choosing the Right Machine Is More Important Than Choosing the Highest Power

Higher power does not automatically produce better welds. Excessive energy may damage

thin parts while insufficient power can create weak joints. The best machine balances frequency,

amplitude, tooling, fixture design and process control. Looking at the complete manufacturing

process always delivers better long-term performance than choosing equipment by specification alone.

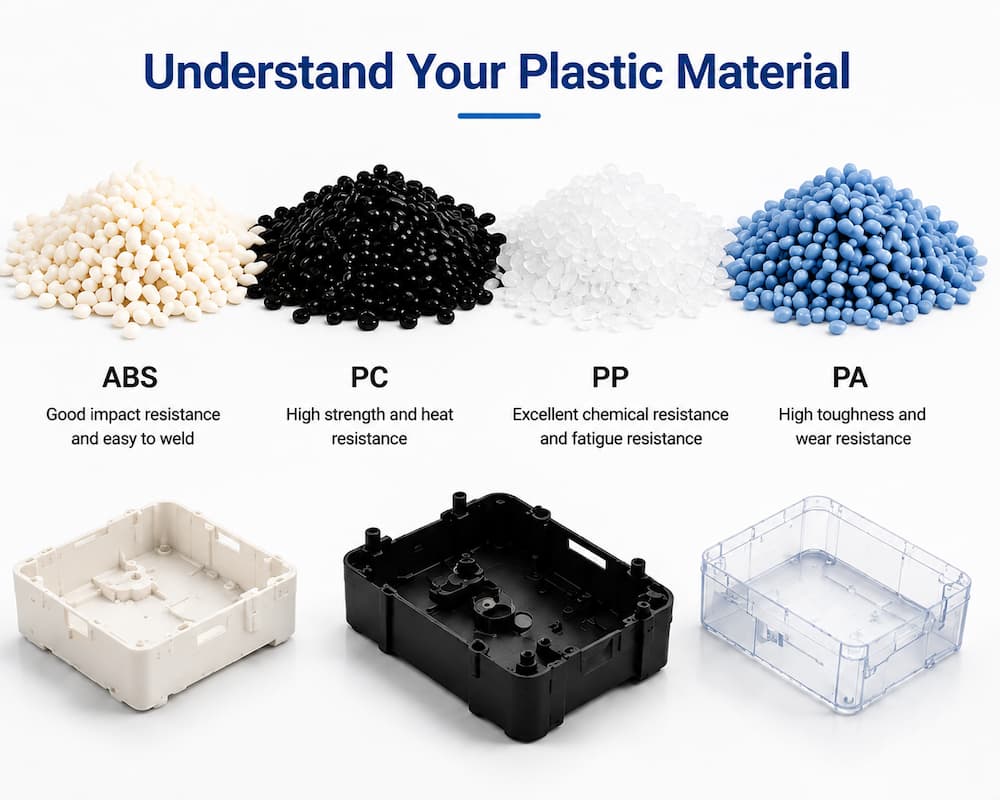

Step 1 – Understand Your Plastic Material

Plastic material is the foundation of ultrasonic welding. ABS, PC and PS are generally easier to

weld than semi-crystalline materials such as PP and PE. Glass-filled materials, flame-retardant

grades and recycled plastics require additional evaluation. Before selecting equipment, identify

the resin type, wall thickness, additives and expected mechanical requirements. Sample welding

is strongly recommended whenever material behavior is uncertain.

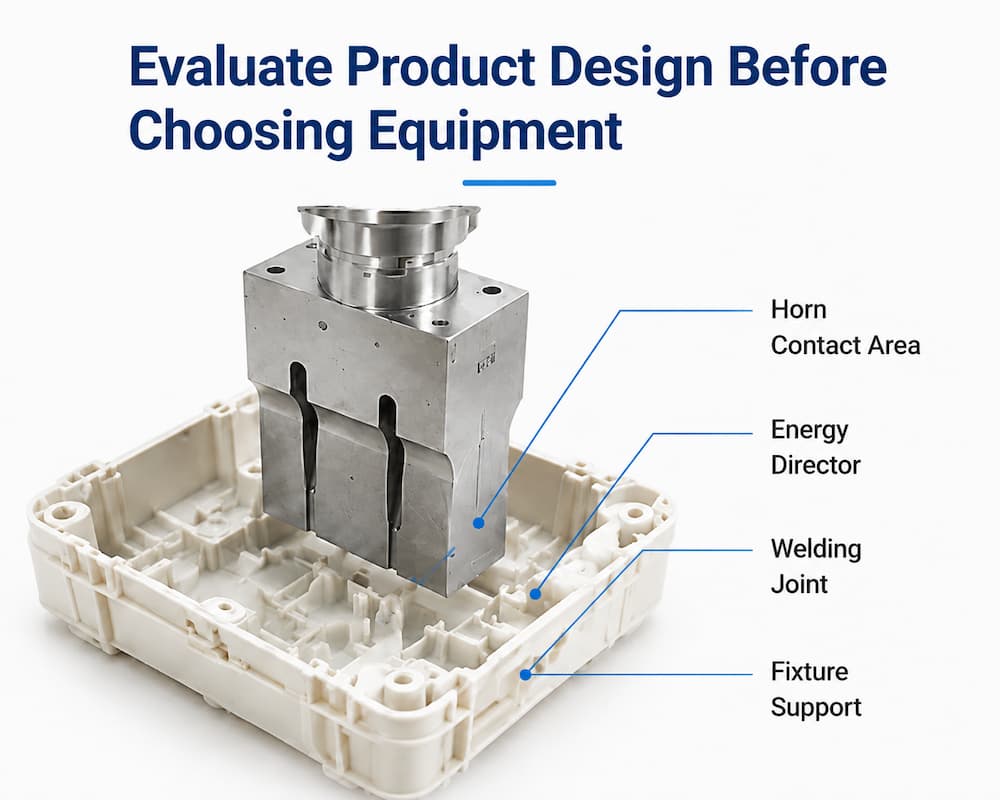

Step 2 – Evaluate Product Design Before Choosing Equipment

Product geometry affects energy transmission. Engineers should review wall thickness, ribs,

bosses, inserts, energy directors, weld joints and cosmetic requirements. Proper fixture

support prevents deformation while a well-designed horn distributes vibration evenly.

Investing in good tooling often improves consistency more than increasing machine power.

Step 3 – Determine Your Production Goal

Prototype production may only require a manual bench-top machine. Medium-volume manufacturing

often benefits from semi-automatic fixtures. High-volume production usually justifies rotary indexing

systems, robotic loading or complete automation. Selecting equipment with future expansion capability

helps reduce long-term investment.

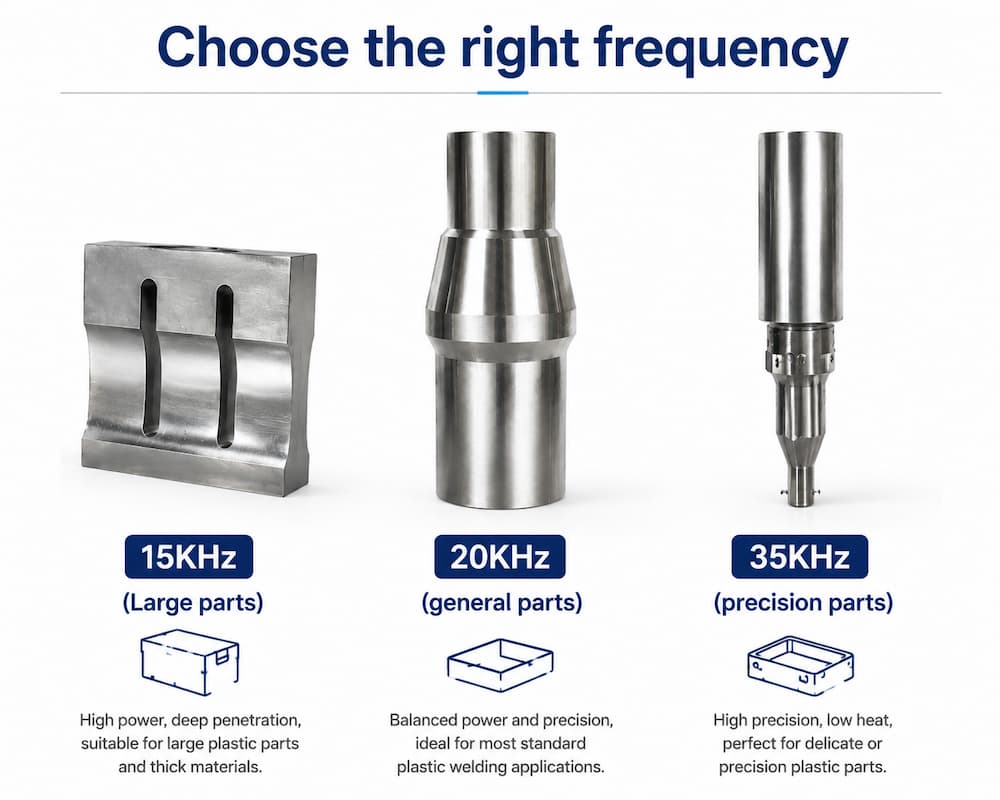

Step 4 – Choose the Right Frequency

As a general guideline, 35 kHz is suitable for small precision components, 20 kHz covers most

industrial plastic welding applications and 15 kHz provides higher amplitude for larger parts.

Frequency selection should always be evaluated together with horn size, product dimensions

and material characteristics.

Step 5 – Servo or Pneumatic?

Pneumatic ultrasonic welders remain an economical solution for many products. Servo-driven

systems offer higher precision, programmable welding profiles and complete process monitoring.

Industries such as medical devices, electronics and precision automotive components often benefit

from servo technology.

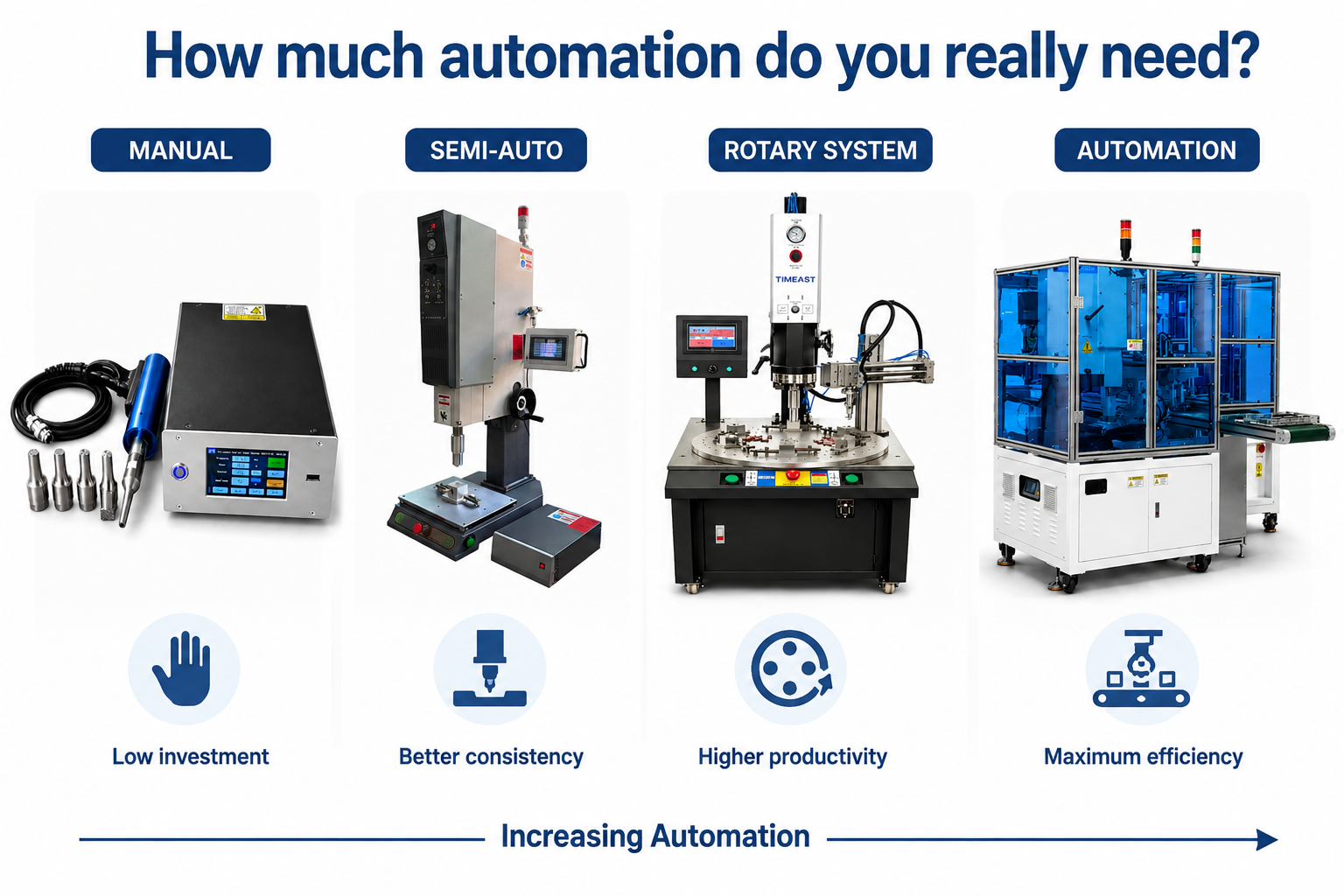

Step 6 – How Much Automation Do You Really Need?

Automation should match production demand. Manual systems are ideal for development and

small batches. Semi-automatic workstations improve repeatability. Fully automated lines integrate

feeding, vision inspection, leak testing, laser marking, robotic handling and data collection for

maximum productivity.

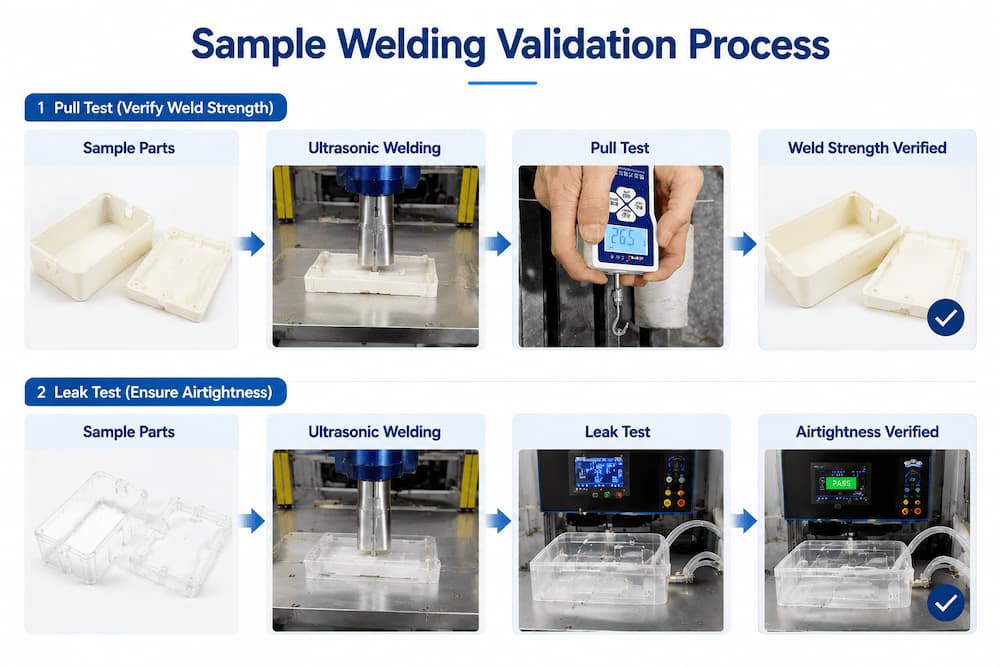

Step 7 – Don't Ignore Quality Validation

Quality validation extends beyond achieving a successful weld. Manufacturers should evaluate

weld appearance, dimensional accuracy, pull strength, leak performance and process repeatability.

Sample welding, destructive testing and air leak testing reduce risk before mass production.

Machine Selection Checklist

Before purchasing equipment, confirm plastic material, product dimensions, annual output, cosmetic

requirements, leak-proof requirements, available factory utilities, future expansion plans and automation

expectations. A structured checklist avoids costly purchasing mistakes.

Common Buying Mistakes

Typical mistakes include choosing equipment only by price, ignoring fixture design, selecting the wrong

frequency, overlooking future capacity, skipping sample validation and purchasing standard equipment

for highly customized products. Engineering consultation usually saves more money than the lowest quotation.
