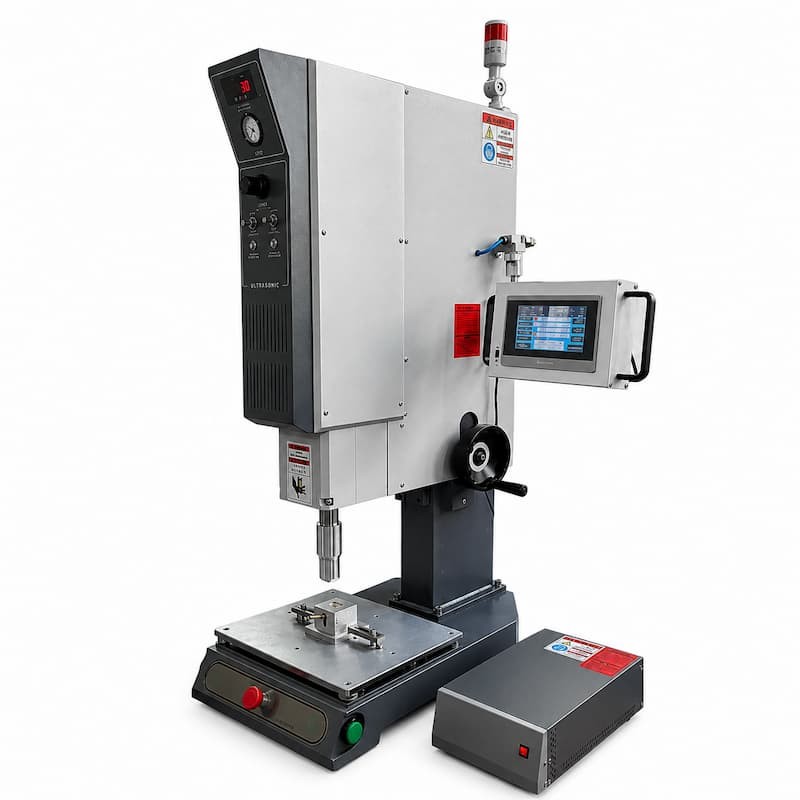

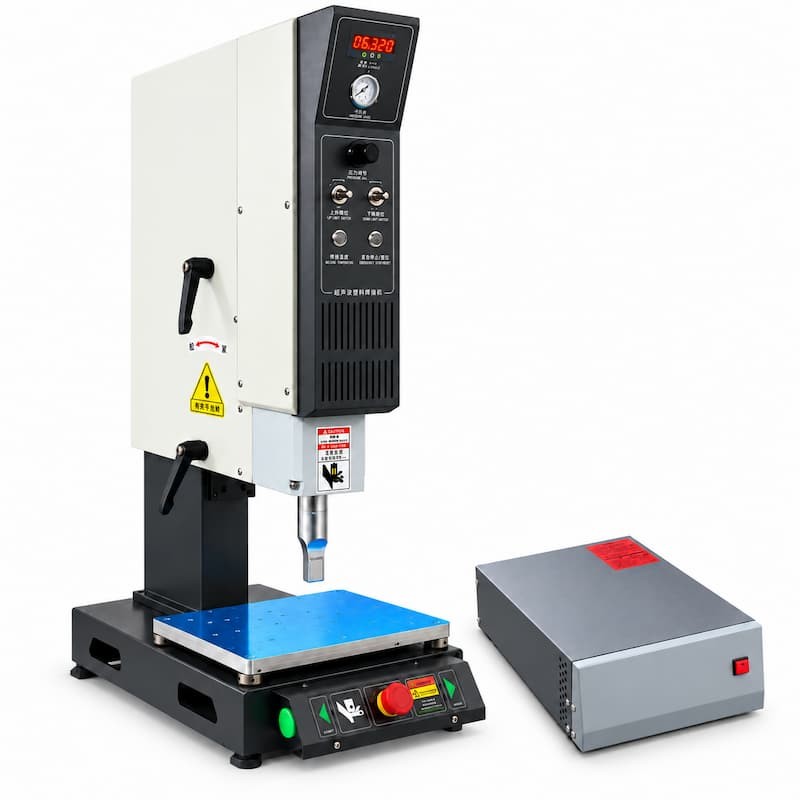

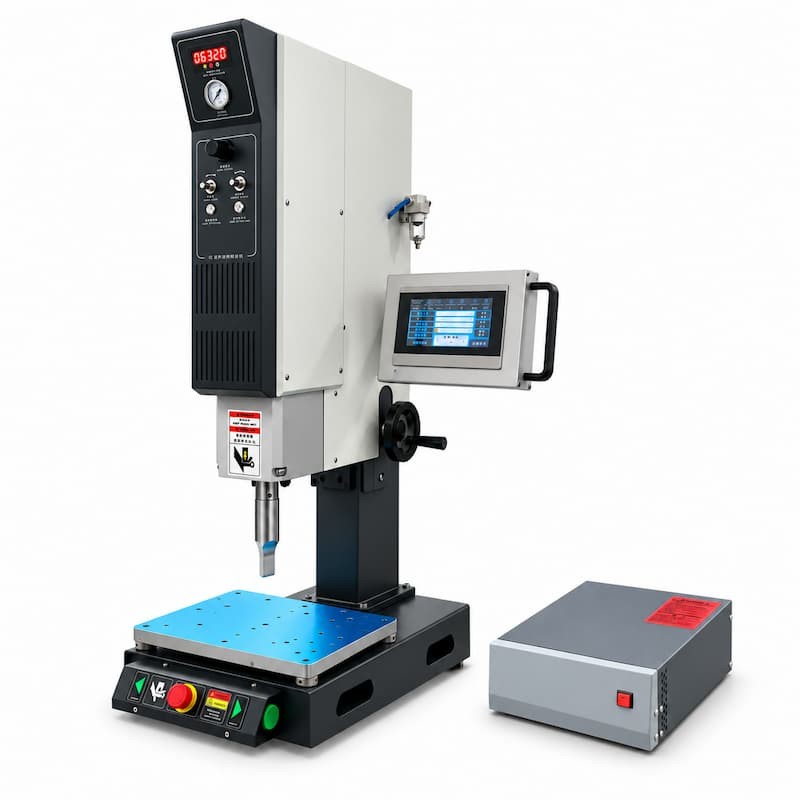

High-Stability 20kHz 3000W Ultrasonic Welder for Precision Assembly

The TIMEAST 20kHz 3000W system is the versatile "workhorse" formodern plastic assembly.

It balances high power with exceptional precision, making it suitable for medium-sized components

that require hermetic seals and cosmetic perfection.

Welding Demo Video

Watch how the 20kHz 3000W ultrasonic welding system operates in real production.

Key Features & Benefits

• 3000W High Power Output

  Provides strong and reliable weld strength for medium to large plastic components.

• Stable 20kHz Frequency

  Ideal for applications requiring deeper penetration and larger weld areas.

• Fast Welding Cycle

  Significantly improves production efficiency and reduces cycle time.

• Precision Control System

  Adjustable parameters ensure consistent weld quality across different materials.

• Durable Industrial Structure

  Designed for long-term continuous operation with minimal maintenance.

• Energy Efficient & Clean Process

  No fumes, adhesives, or secondary materials required.

Technical Specifications

Equipped with a self tuning digital generator for instant frequency tracking

and stable amplitude output.

Applications

This ultrasonic plastic welding machine is widely used across multiple industries:

Automotive Industry

• Interior panels

• Dashboard components

• Plastic housings

Electronics Industry

• Wire connectors

• Battery components

• Plastic enclosures

Medical Devices

• Disposable medical products

• Filters and tubing assemblies

Household Appliances

• Plastic casings

• Small component assemblies

Why this model stands out?

• Automatic Frequency Tracking: No manual tuning required; the digital generator

  adapts to horn wear and temperature changes instantly.

• Precision Depth Stop: Mechanical and electronic limit switches ensure every weld

   is consistent to within microns.

• Ergonomic Safety: Features the dual-start safety system and emergency stop for

   a secure working environment.

• Touchscreen Calibration: Easily set and save up to 100 welding recipes for different products.

Compatible Materials

The machine is suitable for a wide range of thermoplastics:

• ABS

• PP (Polypropylene)

• PC (Polycarbonate)

• PVC

• PE

• Nylon

Advantages Over Traditional Methods

Compared to conventional bonding methods such as adhesives or mechanical fastening,

ultrasonic welding offers:

• Faster production speed

• Stronger and cleaner joints

• Lower operational cost

• No additional materials required

• High consistency and automation compatibility

Customization & Integration

We provide customized solutions based on your production requirements:

• Custom welding molds (horn/tooling)

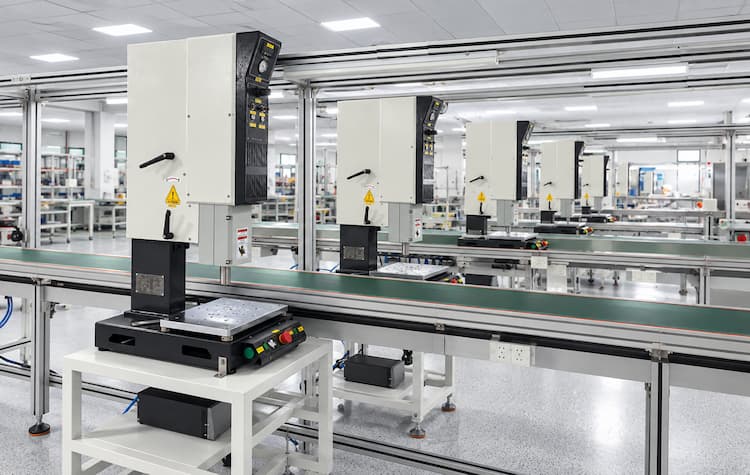

• Automation line integration

• PLC control systems

• Special fixture design

Our engineering team ensures seamless integration into your existing manufacturing process.

Frequently Asked Questions

Q1: What is the advantage of a 20kHz ultrasonic welding machine?

A: 20kHz machines provide higher power output, making them suitable for

larger plastic parts and deeper welds compared to higher frequency systems.

Q2: What materials can be welded with this machine?

A: It supports a wide range of thermoplastics including ABS, PP, PC, PVC, and nylon.

Q3: Is ultrasonic welding better than adhesive bonding?

A: Yes, it is faster, cleaner, and more cost-effective since it does not require additional materials.

Q4: Can the machine be customized?

A: Yes, we offer customized tooling, automation solutions, and system configurations.

Q5: What industries use ultrasonic welding machines?

A: Automotive, electronics, medical devices, packaging, and consumer goods industries.

Get Your Ultrasonic Welding Solution Today

Looking for a reliable 20 kHz 3000 W ultrasonic welding system for your production?

• Request a Quote

• Send samples for welding testing
