Electronic Tag Ultrasonic Welding with Precision Ultrasonic Welding Machine

This project is an ultrasonic welding application for electronic tags. The customer required stable welding,

consistent product appearance and better control of the welding process. Based on the product structure and

welding requirements, we used a precision ultrasonic welding machine with multiple welding modes,

together with a custom ultrasonic horn and fixture.

Project Overview

Electronic Tag Ultrasonic Welding Requirements

Electronic tags are relatively small plastic parts, so the welding process needs to be controlled carefully.

Too much ultrasonic energy may affect the product appearance or damage the plastic part, while insufficient

energy can result in incomplete welding.

For this application, the key was not simply to use higher ultrasonic power. The machine, ultrasonic horn,

fixture and welding parameters needed to work together to find a stable welding window for the actual product.

Why We Used a Precision Ultrasonic Welding Machine

For electronic tag welding, welding consistency and process control are more important than simply

increasing machine power. This is why we used a precision ultrasonic welding machine with more

flexible process control.

The precision ultrasonic welding machine supports multiple welding modes, allowing us to adjust the welding

process according to the actual product condition and welding result. This provides more flexibility during

sample testing and process development.

For small plastic components such as electronic tags, the acceptable welding window can be relatively narrow.

Better control of the welding process helps reduce variation between parts and improves repeatability during production.

Custom Ultrasonic Horn and Fixture

The ultrasonic horn and fixture were designed according to the actual electronic tag.

For small plastic parts, tooling is an important part of the ultrasonic welding process. The horn needs to transfer

ultrasonic vibration correctly to the welding area, while the fixture must hold the product securely and maintain

the correct position during welding.

For this project, the horn, fixture and machine parameters were tested together as one complete welding solution.

Actual Electronic Tag Welding Test

Before confirming the final welding settings, we carried out welding tests using the actual electronic tags.

During testing, the welding mode and process parameters were adjusted according to the product structure,

welding condition and final result.

The main targets were:

• Stable welding results

• Consistent welding position

• Good product appearance

• Repeatable welding quality

Actual part testing is important because ultrasonic welding parameters cannot be selected only from

the machine specifications. The plastic material, joint design, welding area and product structure can

all affect the final welding result.

Electronic Tag Ultrasonic Welding Video

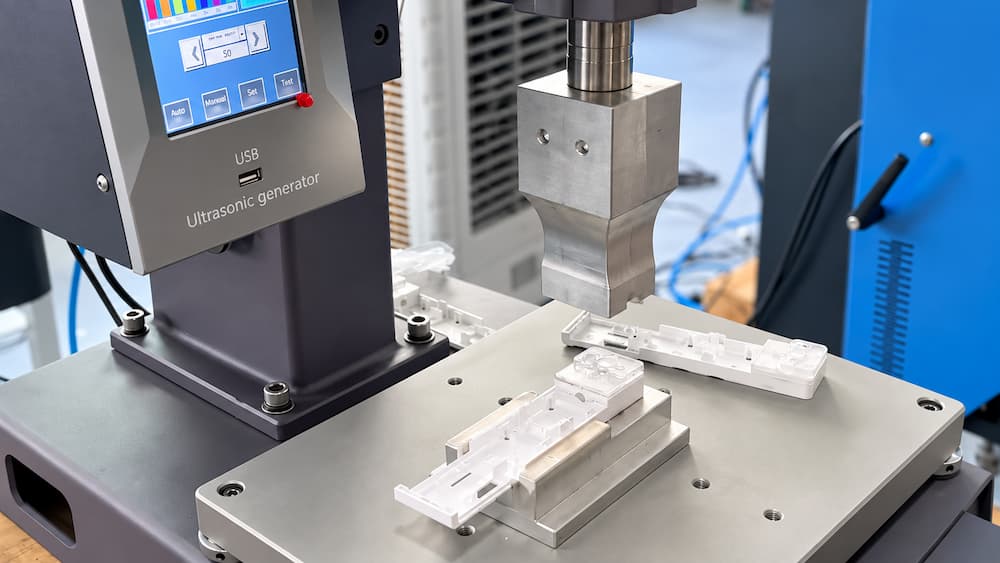

The video below shows the actual precision ultrasonic welding machine, custom tooling and electronic

tag welding process during testing.

Multiple Welding Modes for Better Process Control

One of the advantages of this precision ultrasonic welding machine is the flexibility to use different

welding control modes according to the application.

Different plastic parts may require different welding strategies. For some applications, welding time

 may be more suitable, while other parts may require a different control method to achieve better consistency.

For electronic tags, this flexibility makes it easier to compare different welding conditions during

sample testing and determine a more suitable process for the actual product.

Suitable for Similar Precision Plastic Welding Applications

Besides electronic tags, this type of precision ultrasonic welding solution can also be considered for:

• Small plastic housings

• Electronic components

• Sensor housings

• Plastic covers

• Small automotive plastic parts

• Other precision plastic assemblies

The final ultrasonic frequency, power, horn, fixture and welding process should always be selected according to

the actual product.
