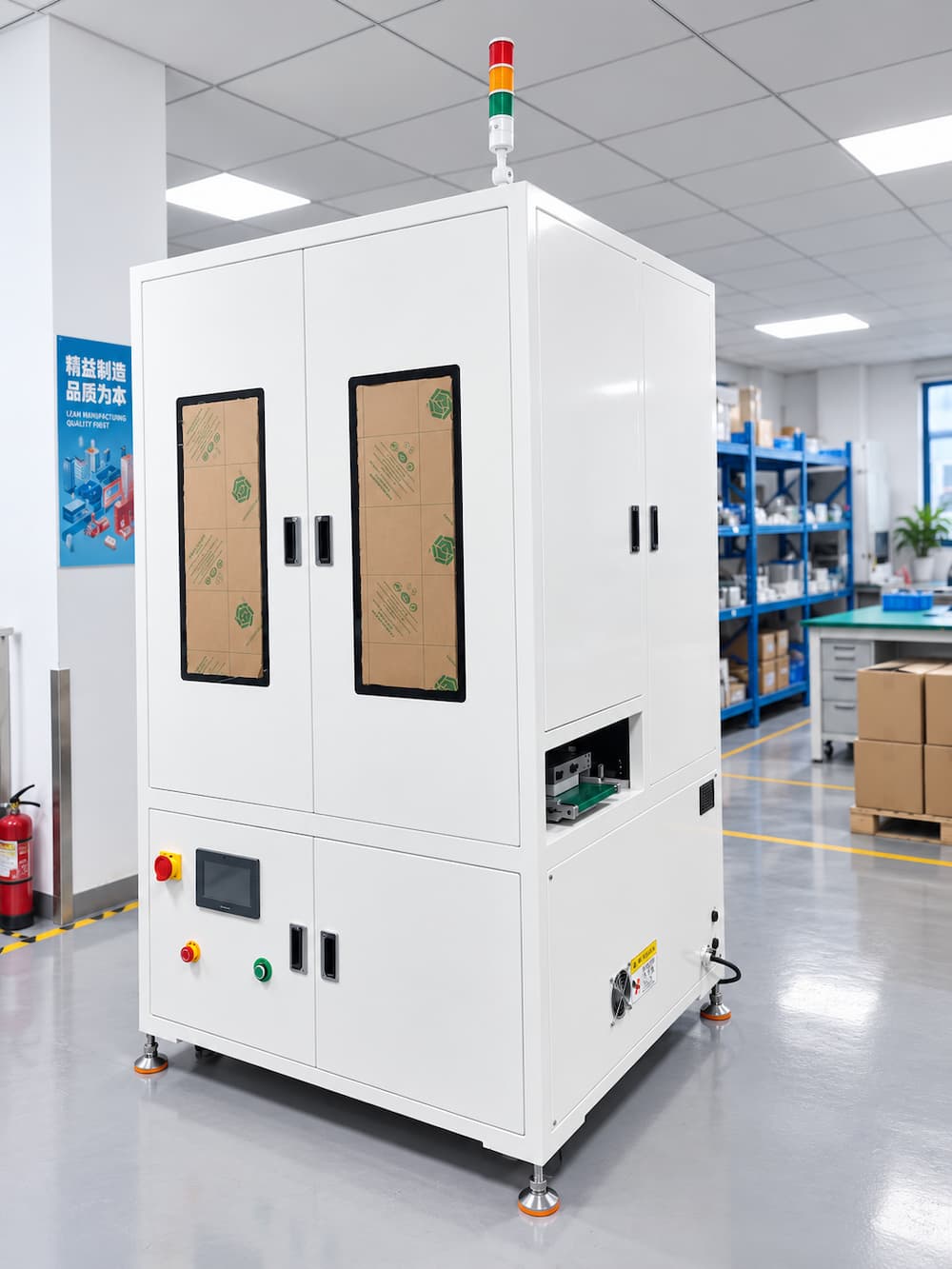

Enclosed Automatic Ultrasonic Welding Machine

15kHz 6000W Automatic Welding Cell with Conveyor & Servo XY Positioning

Automatic conveyor transfer, pick-and-place, precision positioning, ultrasonic welding and unloading

in one enclosed machine. Designed for standalone automated production or integration into the customer's

existing production line.

15kHz · 6000W · Approx. 500 pcs/h · PLC + HMI · Servo XY

Automatic Welding from Loading to Unloading

The machine integrates ultrasonic welding with automatic product handling for continuous production.

Process:

Conveyor Feeding → Automatic Pick & Place → Servo XY Positioning → Ultrasonic Welding →

Automatic Unloading

Products enter the machine through the conveyor, are automatically picked and positioned for welding,

and are transferred to the unloading position after the welding cycle is completed.

The system can operate as a standalone automatic welding cell or be integrated with the customer's

existing production line.

Watch the Automatic Welding Process

See the complete process from conveyor transfer and servo XY positioning to ultrasonic welding

and automatic unloading.

Key Features

• 15kHz 6000W Ultrasonic Welding

  High-power ultrasonic welding configuration for applications requiring higher welding energy.

  The welding horn and fixture are customized according to the actual plastic part, material and weld joint.

• Servo-Driven XY Positioning

  The XY motion system combines:

• Servo Motor + Ball Screw + Linear Guide

  for controlled and repeatable product transfer and positioning.

• Automatic Conveyor & Pick-and-Place

  The system can automatically transfer, pick, position, weld and unload products, reducing repeated

  manual handling.

• PLC + HMI Control

  PLC and HMI provide centralized machine control, parameter setting, manual/automatic operation,

  alarm display and production monitoring.

• Enclosed Machine Structure

  The enclosed structure helps isolate the working area and reduce ultrasonic welding noise during

  automatic production.

  Because the conveyor requires product infeed and outfeed openings, the enclosure is not completely sealed.

Technical Specifications

Designed for Production Line Integration

The machine can be used as an independent automatic ultrasonic welding cell or integrated into

the customer's existing production line.

Conveyor height, product transfer direction, communication signals, loading position and unloading interface

can be customized according to the production line.

Customized Around Your Product

The machine configuration is designed according to the actual welding application.

We can customize:

Welding horn · Fixture · Conveyor · Pick-and-place mechanism · XY travel · Loading method ·

 Unloading method · PLC/HMI · Machine enclosure · Production line interface

Typical Applications

• Automotive plastic components

• Electrical and electronic housings

• Home appliance components

• Industrial plastic assemblies

• Large molded plastic parts

What We Need for Evaluation

Please send us:

• Product photos or 2D/3D drawings

• Plastic material

• Welding position

• Required output

• Current production process

• Loading and unloading requirements

• Production line information

We can evaluate the ultrasonic welding process, horn, fixture and automatic handling system before

final machine design.

Need to Automate Your Ultrasonic Welding Process?

Send us your product information and production requirements.

We can evaluate whether your application requires a standalone ultrasonic welder, an enclosed

automatic welding cell or integration into an existing production line.

[Get a Quote]
