Digital ultrasonic generators for plastic welding machines and custom automation. Select the configuration around your transducer, operating frequency, power requirements and machine controls.
• Horizontal and vertical housing options
• Configurations with or without an integrated HMI
• Frequency and power selection for the intended ultrasonic system
• Machine control and connection requirements reviewed before supply
Introduction
An ultrasonic generator converts mains electricity into high-frequency electrical power to drive the transducer.
The transducer converts this power into mechanical vibration, which is transmitted through the ultrasonic stack
to the welding horn.
Generator selection requires a review of the transducer, tooling and machine controls.
Matching the nominal frequency alone does not confirm compatibility.

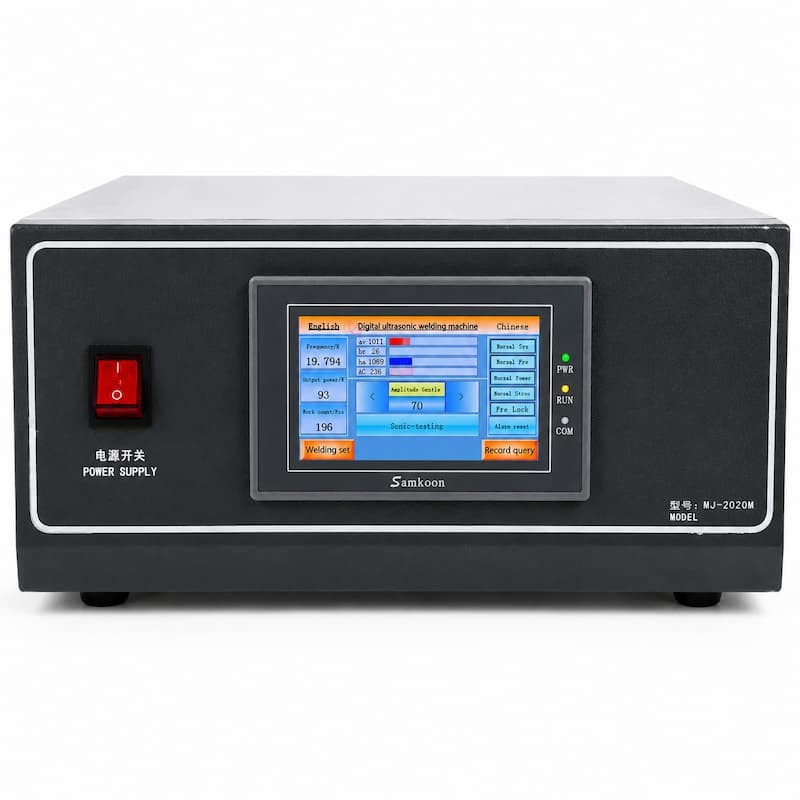

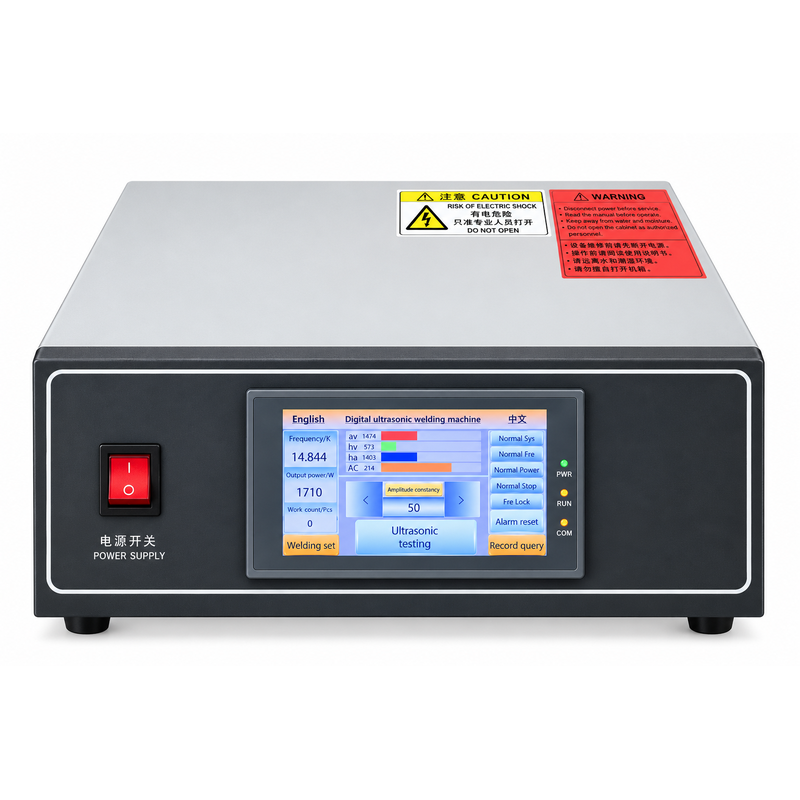

| Horizontal housing with HMI | Local parameter setting and operation through an integrated touchscreen |

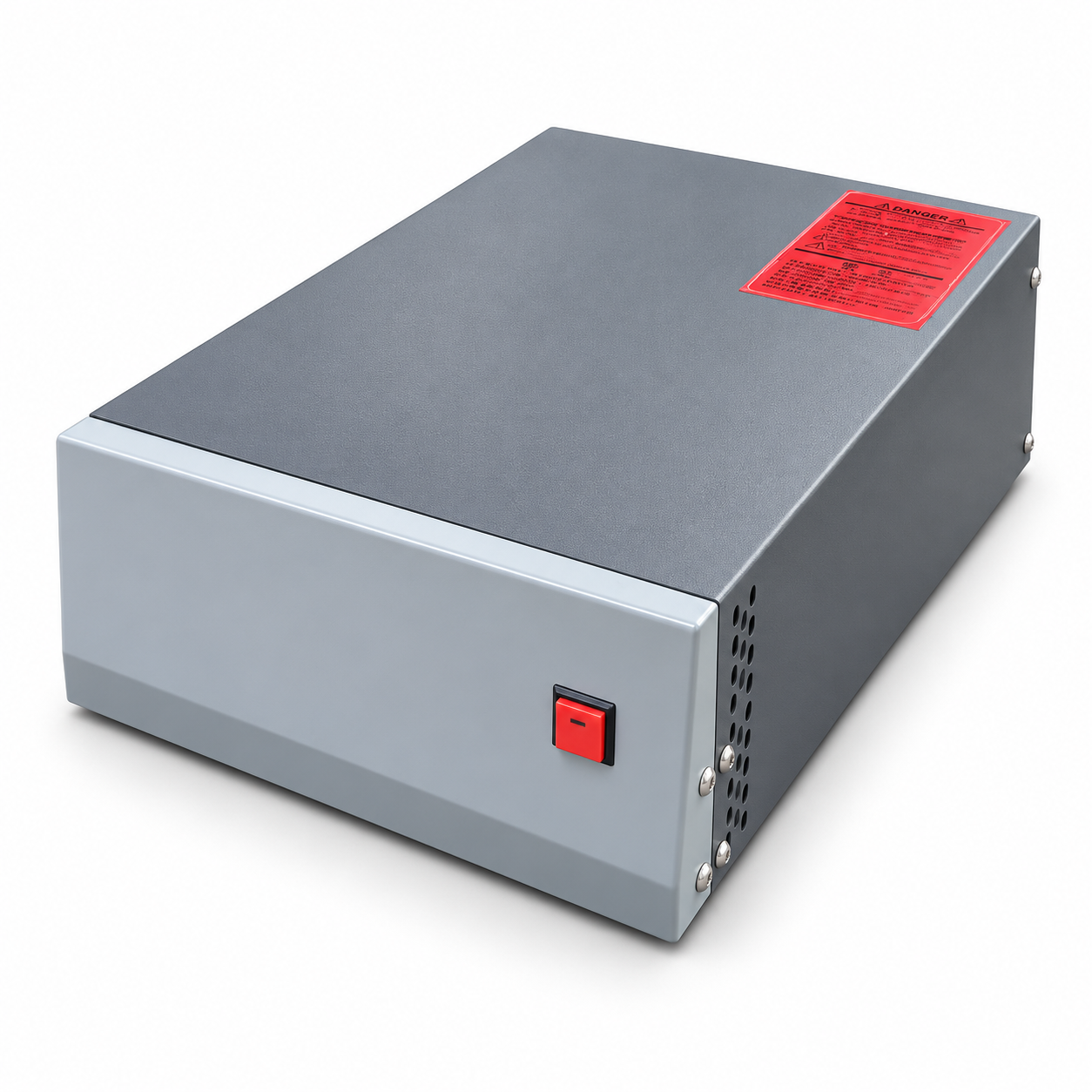

| Horizontal housing without HMI | Integration into equipment with a separate machine control interface |

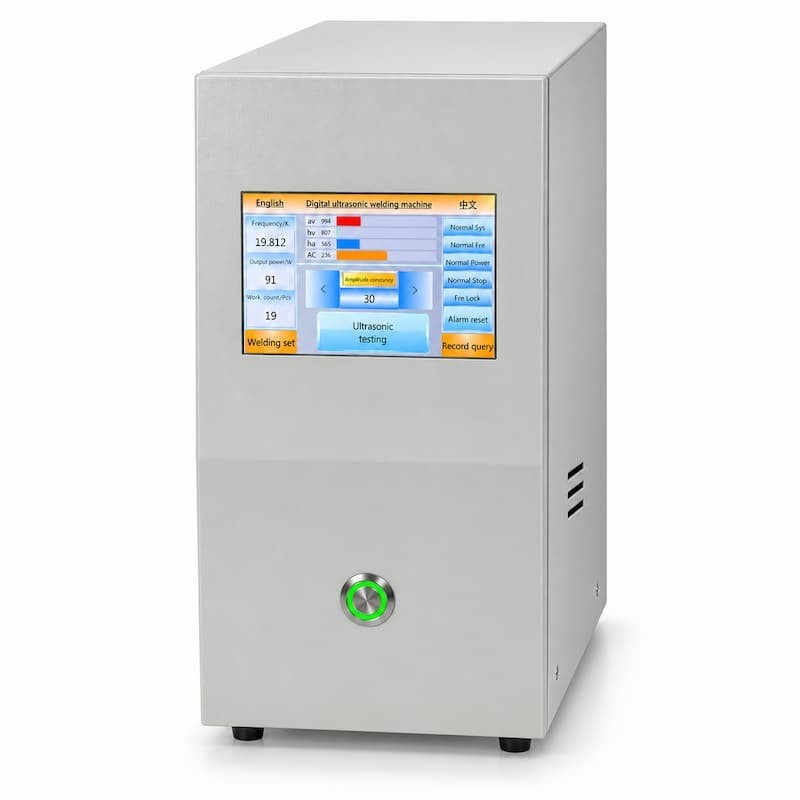

| Vertical housing with HMI | Installations requiring a vertical enclosure layout and local touchscreen access |
Available configurations depend on the selected frequency, power rating and control requirements.
Please confirm enclosure dimensions, mounting space and cooling clearance before installation.

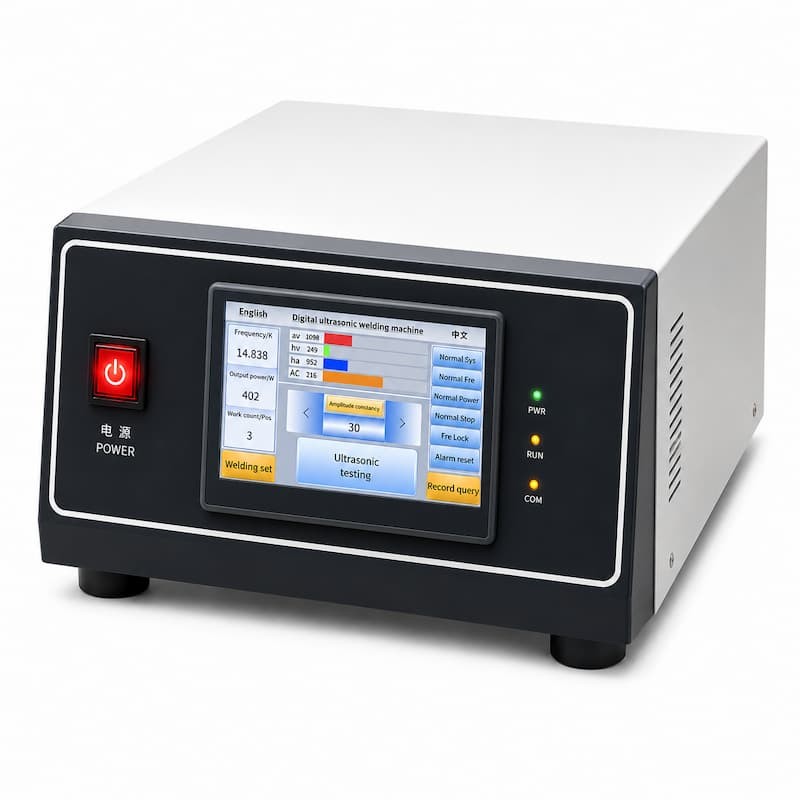

Preview the touchscreen interface of one TIMEAST ultrasonic welding generator configuration,
including the displayed settings and operating information.
The interface shown is an example. Screen layout and available functions vary by model and configuration.
Versions without an integrated touchscreen are also available.
| Parameter | Specification |
| Product | Digital ultrasonic welding generator |
| Frequency options | 15, 20, 28, 35 and 40 kHz, depending on model |
| Rated output power | Model-specific; confirmed during selection |
| Power supply | 220 V, 50 Hz; other requirements subject to confirmation |
| Housing options | Horizontal or vertical, depending on configuration |
| Operator interface | Integrated HMI or configuration without local HMI |
| Machine control interface | Connection and signal requirements confirmed for the selected model |
| Protection functions | Confirmed in the selected model specification |
Frequency and power options are model-specific and cannot be combined arbitrarily.
Request the specification and connection details for your intended configuration.
For a replacement generator, please provide the existing generator and transducer nameplates, operating frequency,
rated power and connector photos.
Our review also considers the ultrasonic stack, cable connections and machine control requirements.
The same nominal frequency or a similar connector does not establish electrical or control compatibility.
If the original specifications are unavailable, start with clear photos of the generator, transducer, connectors
and complete machine.
For a new ultrasonic assembly, explore our ultrasonic transducers and custom welding horns.
For machine builders and automation projects, generator selection should include the control sequence and required
signal exchange with the main equipment.
Please specify how the welding cycle will be started, which status or fault signals are required, and where parameters
will be set. Available signals, electrical levels, connectors and communication options must be confirmed for
the selected model.
An existing machine HMI does not by itself confirm that it can communicate with the generator.
A replacement can be reviewed after checking the existing generator, transducer, ultrasonic stack
and control connections. Please send nameplate and connector photos before ordering.
The frequencies listed on this page describe options across the product range. Do not assume that one generator
can switch between all listed frequencies. The operating frequency must be confirmed for the selected model.
An integrated HMI provides local access to settings. A configuration without a local HMI requires a suitable method
of setup and control within the machine. The appropriate option depends on your equipment architecture.
Please provide the required control signals and electrical specifications. The interface and wiring must be checked
for the selected generator model before integration.
Tell us whether you need a replacement generator, a new ultrasonic system or an automation integration.
For an initial review, send:
Existing generator and transducer nameplate photos, if available
Operating frequency and required power
Connector and cable photos
Machine control or PLC interface requirements
Supply voltage and installation space
Use the inquiry form below or contact us on WhatsApp: +86 159 8954 1416
