Air Leak Testing Machine

Operation Video

Ideal for leak testing of sealed housings, valves, reservoirs, connectors, medical consumables,

 and consumer electronics enclosures.

How Air Leak Testing Works

The air leak testing machine uses pressure-based detection methods to evaluate

the sealing performance of a product. The test object is pressurized, and

any pressure drop or leakage rate is measured to determine if the product

meets quality standards.

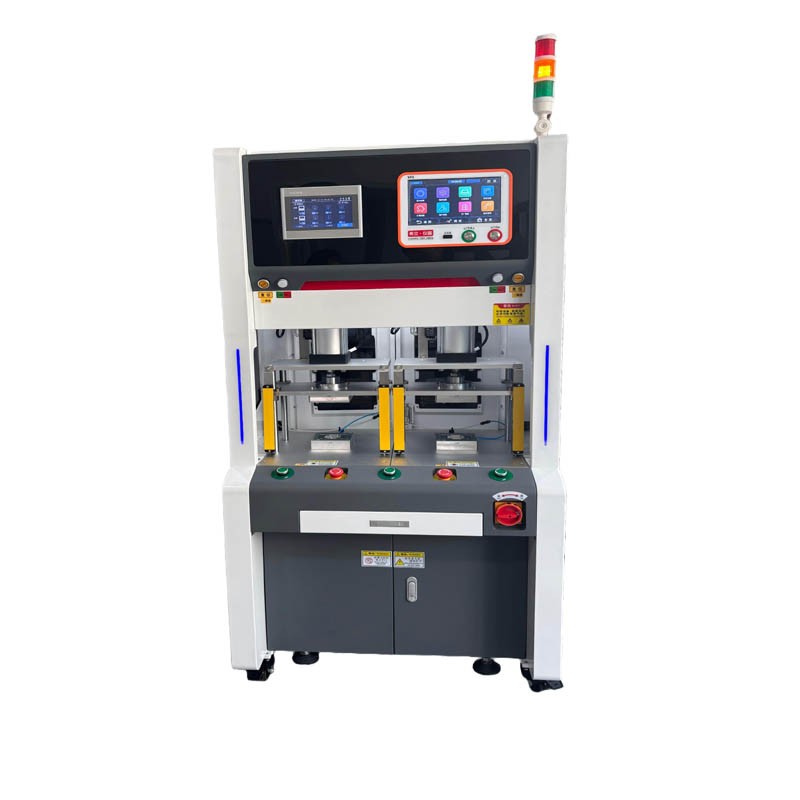

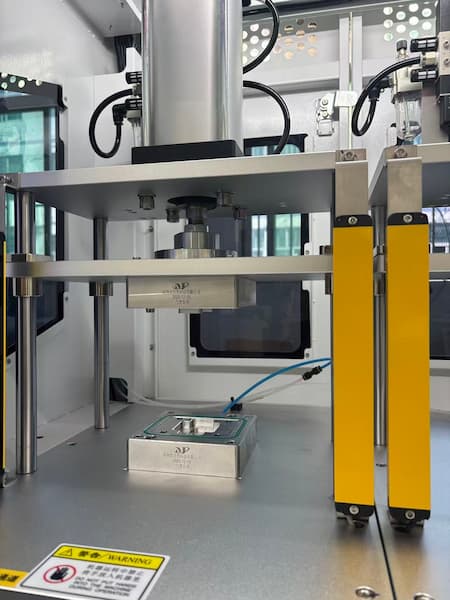

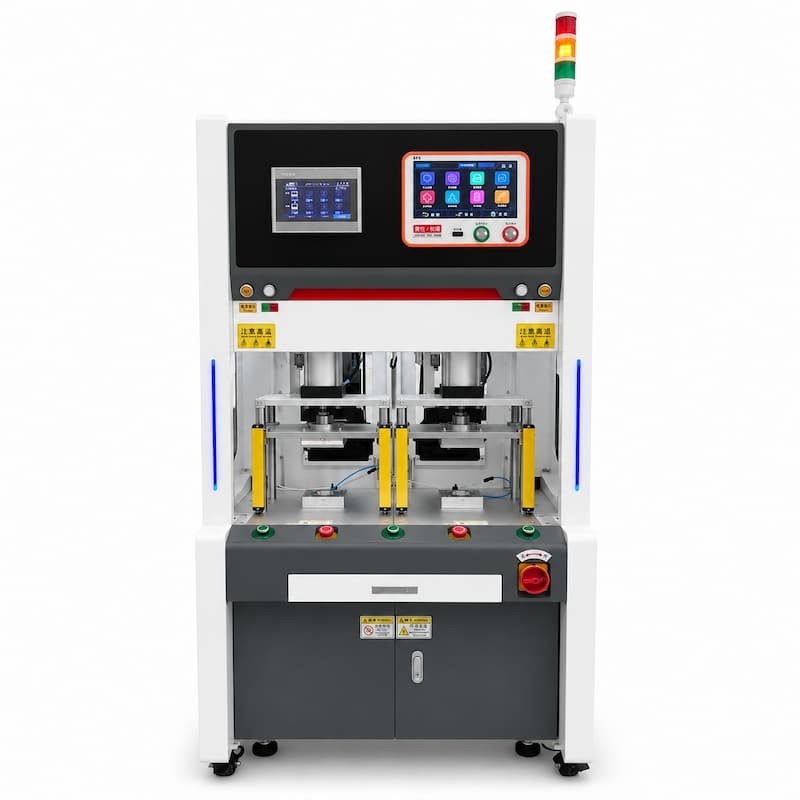

Precision Air Leak Testing Machine (2 Stations)

High-accuracy pressure decay leak testing for sealed parts. Designed for stable, repeatable

results in mass production with automated judgement and traceability options.

Key Benefits

• 2 stations to boost throughput for production lines

• 0.1 Pa resolution; sensor accuracy up to 0.05% FS

• Wide pressure range: -20 kPa to 500 kPa

• Automatic PASS/FAIL judgement with sound & light alarm

• Barcode/QR code scanning for traceability (optional data export)

Typical Applications

• Automotive components (valves, housings, fuel systems)

• Medical devices (filters, tubing, sealed containers)

• Electronic products (battery housings, connectors)

• Packaging and sealed containers

• Industrial plastic components

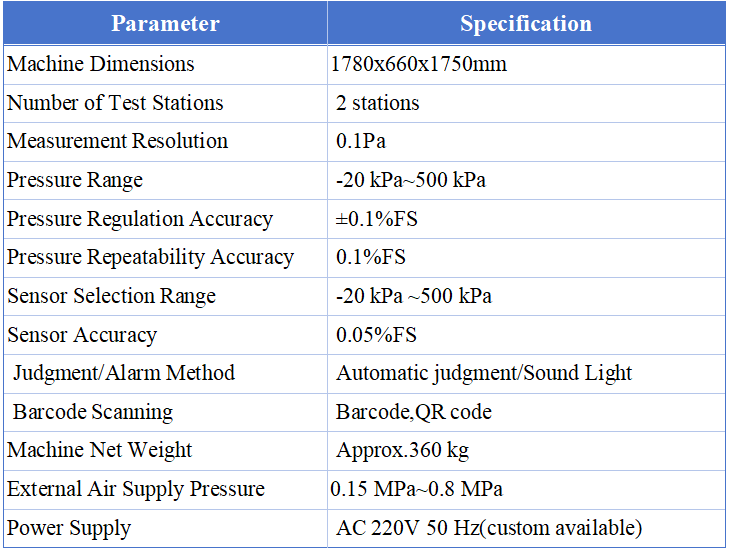

Specification

Test Principle & Process

Inflation → Stabilization → Detection → Automatic Judgement. Parameters (test pressure,

stabilization time,detection time) are configurable based on part volume and target leak rate.

Options

• Custom fixtures

• Data logging/export

• Ethernet/serial communication

• MES/PLC integration

• Multi-language UI.

Warranty and After-sale Service

12-month warranty (excluding consumables) + lifetime technical support. Remote support

via video/phone/email.Overseas on-site service available.

• Discuss Your Leak Testing Requirement

• Send samples for sealing evaluation
