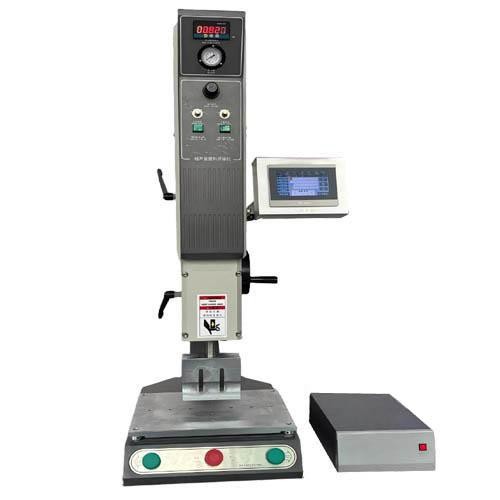

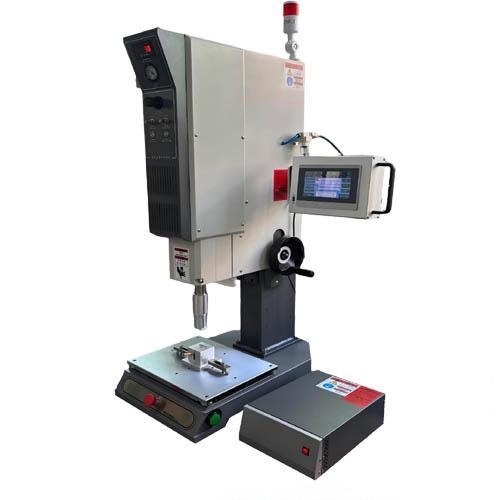

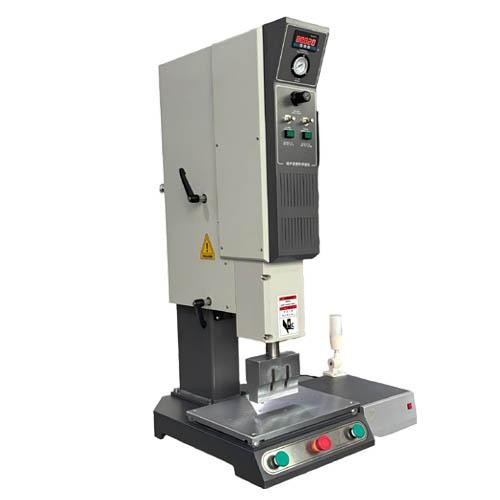

20Khz 3000W  Ultrasonic Welding System with HMI Interface

Application

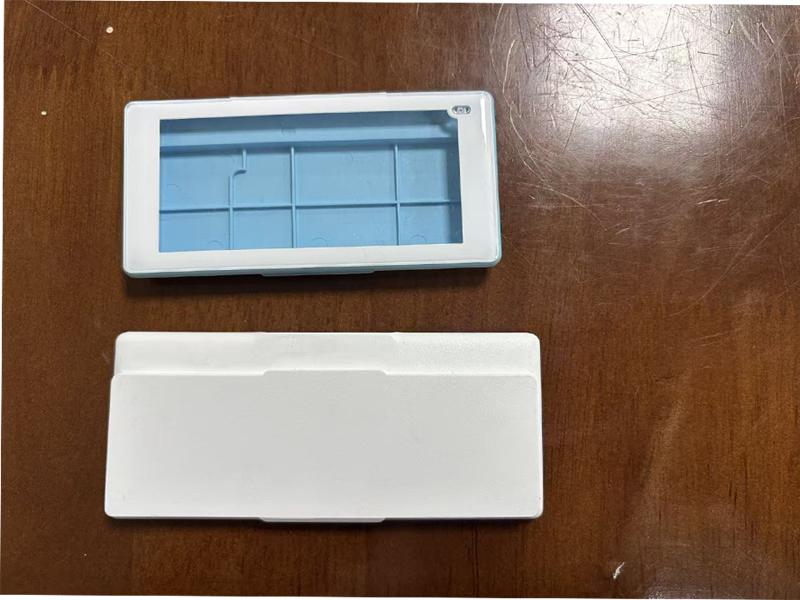

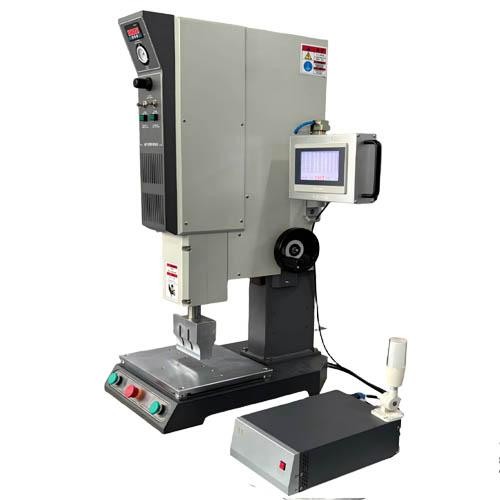

This ultrasonic welding machine is used for sealing high precision thermoplastic components.The machine is equipped with slide rail and HMI interface.

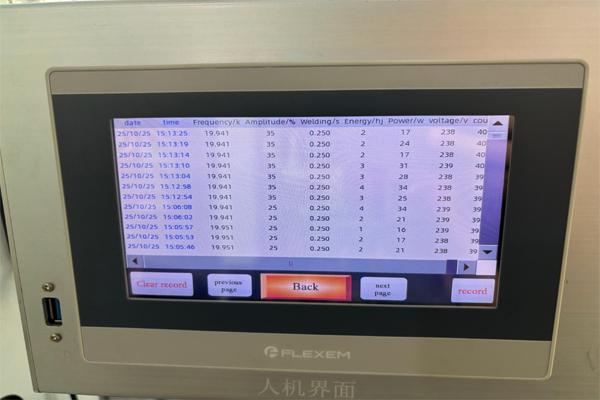

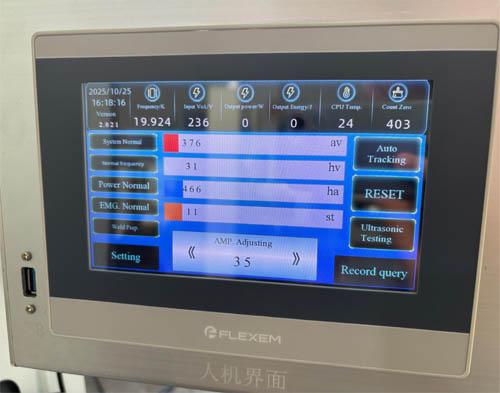

Parameters can be adjusted by HMI and recording all welding parameters.

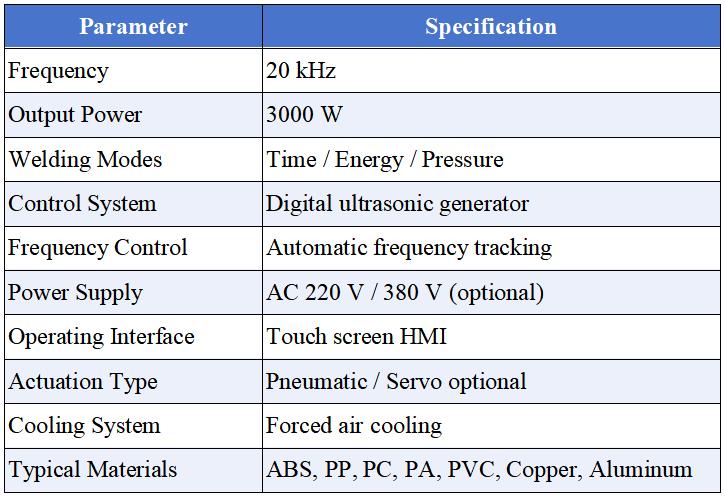

Basic Parameter

Model: TEC - 2030J

Power: 3000W

Frequency:  20Khz

Welding Unit Stroke: 0-300mm

Cylinder Stroke: 75mm(adjustable 13mm)

Fine-tuning: 0-10mm

Touch Panel: 7"

Air Pressure: 0.15Mpa - 0.6Mpa

Power Supply: 220V 50Hz (or 110V 60Hz)

Welding Horn: 7075 Aluminum Alloy(Optional: Titanium Alloy)

Machine Dimension: 680*400*1230mm~ 1460mm

Machine Weight:140KG

Ultrasonic Generator: 350*250*150mm

Generator Weight: 8KG

Free Accessories(1pc pipe with fast joint, 1set Hex key, 1pc special wrench,2pcs fixtures)

Operation Video

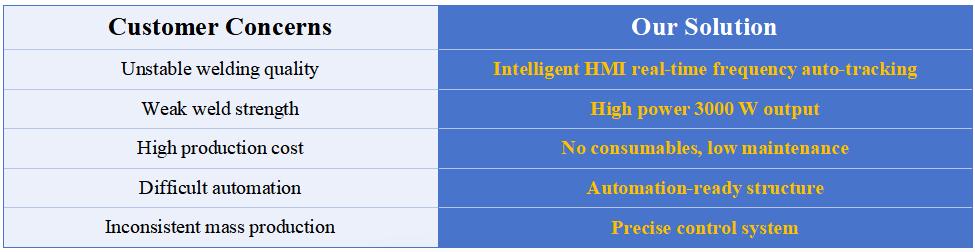

Why choose the Ultrasonic Welder?

A. Real-time process visualization and control ensure optimal performance.

B. Achieve strong and consistent welds every time, ensuring the integrity and durability.

C.  Digital control system and self-tunning for guaranteeing perfect welds.

D.  Significantly reduces energy consumption compared to traditional welding methods.

E. Minimizes material waste with precise welding, lowering production costs.

F.  Robust build quality ensures long-term reliability even in continuous operation.

G.   Intuitive controls make operation effortless for your team.

H. Ultrasonic welding eliminates the need for glues and solvents, making it an environmentally option.

I.  Produces no harmful emissions, aligning with green manufacturing initiatives.

Machine Packing

Compliance to Solid Wood Packaging Materials (SWPM) Regulations:  The International Plant Protection

Convention(IPPC) and International Standards for Phytosanitary Measures no. 15 (ISPM's #15) guidelines

protect against insect infestation in packaging materials.

Warranty and After-sale Service

Warranty

Machine (except consumable parts like sensors) is one year warranty under normal operation,

lifetime technical support and service. Machine parts defect during warranty period, which

will be sent to your end for replacement.

After-sale Service

If need any technical support,kindly contact us lively video call, phone call or email. email or phone call.

Oversea onsite service(optional): mutual communication for detail discussion. There could be extra fee

(like travelling fee,insurance,commodity fee,etc.) result from the traveling.

Contact Us  now for a personalized quote and start your journey towards superior product quality and efficiency.
