Equipment Name and Model

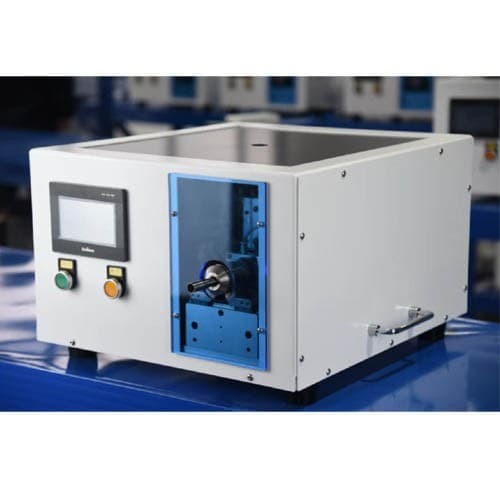

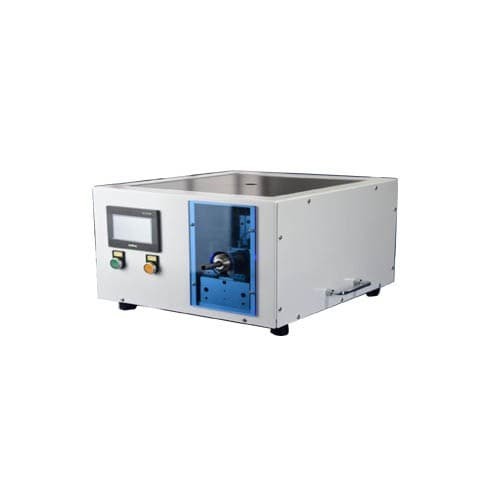

Name: Semi-auto Desktop Assy Machine for Sealing Ring

Model: TEC-253M

Basic Dimensions: L500mm * W460mm * H300mm (Actual equipment dimensions may vary)

Main Features

a. This equipment is a desktop sealing ring assembly machine, mainly composed of a sheet metal housing,

sealing ring feeding system, sealing ring expansion mechanism, lubrication oil filling system, electrical

control system, and other components.

b. It uses a touchscreen all-in-one control system. The device parameters can be set, and information

 such as the number of finished products, fault locations, and troubleshooting methods can be viewed.

The screen interface is simple and easy to understand, making daily use and maintenance convenient.

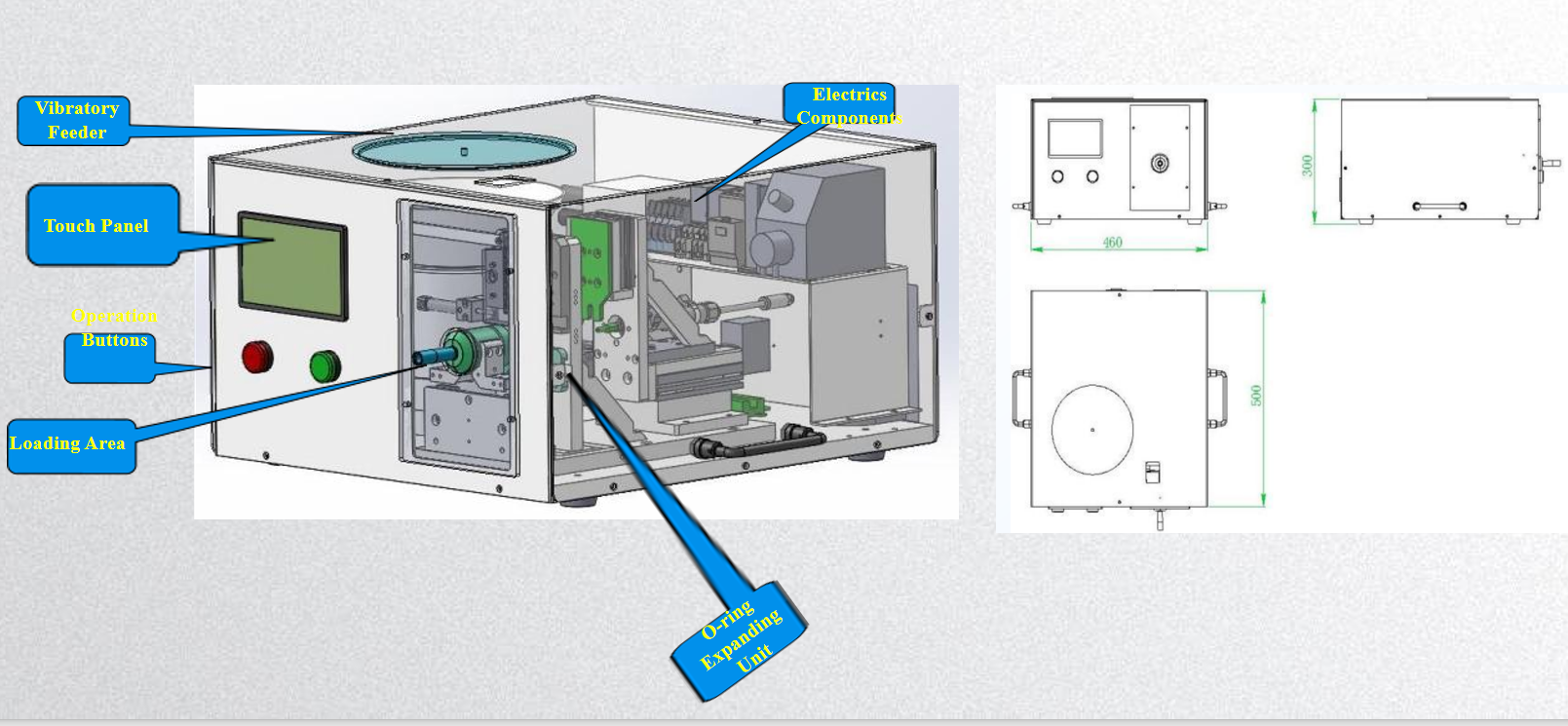

Outline

Pneumatic System

a. Main pneumatic components such as cylinders, solenoid valves, and air filters are from the

   Taiwan AIRTAC brand.

b. The air supply system includes pressure stabilization, air-water separation, and impurity filtration

  devices to ensure dry and clean air.

Electrical Control System

a. Controlled by an integrated touchscreen, with electrical components complying with national safety standards.

b. High-quality brands are used for the main power switch, relays, buttons, and imported sensors.

c. All electrical wiring uses standard terminals with accurate labeling.

Technical Specifications

a. Feeding method: O-rings are fed by a vibrating bowl.

b. Control method: Integrated touchscreen.

c. Factory humidity: ≤95%, Factory temperature: 3–40°C.

d. Compressed air pressure: 0.5–0.7MPa.

e. Power supply: AC220V ±15%, Frequency: 50Hz ±2%.

f. Equipment capacity: Approx. 200-300 pieces/hour.

g. Lead Time: 20 days

Warranty and After-sale Service

Warranty

Machine (except consumable parts like sensors) is one year warranty under normal operation,

lifetime technical support and service. Machine parts defect during warranty period, which

will be sent to your end for replacement.

After-sale Service

If need any technical support,kindly contact us lively video call, phone call or email. email or phone call.

Oversea onsite service(optional): mutual communication for detail discussion. There could be extra fee

(like travelling fee,insurance,commodity fee,etc.) result from the traveling.
