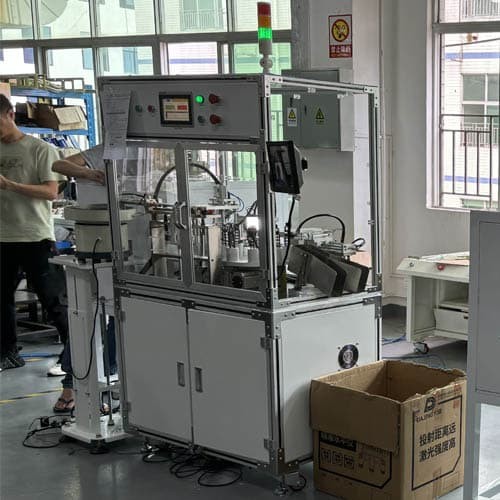

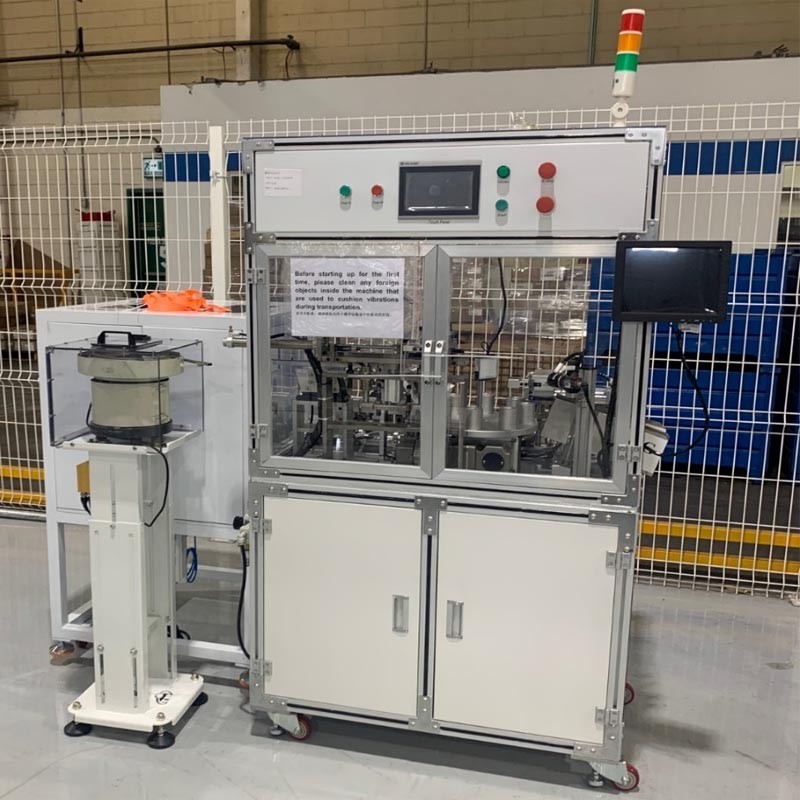

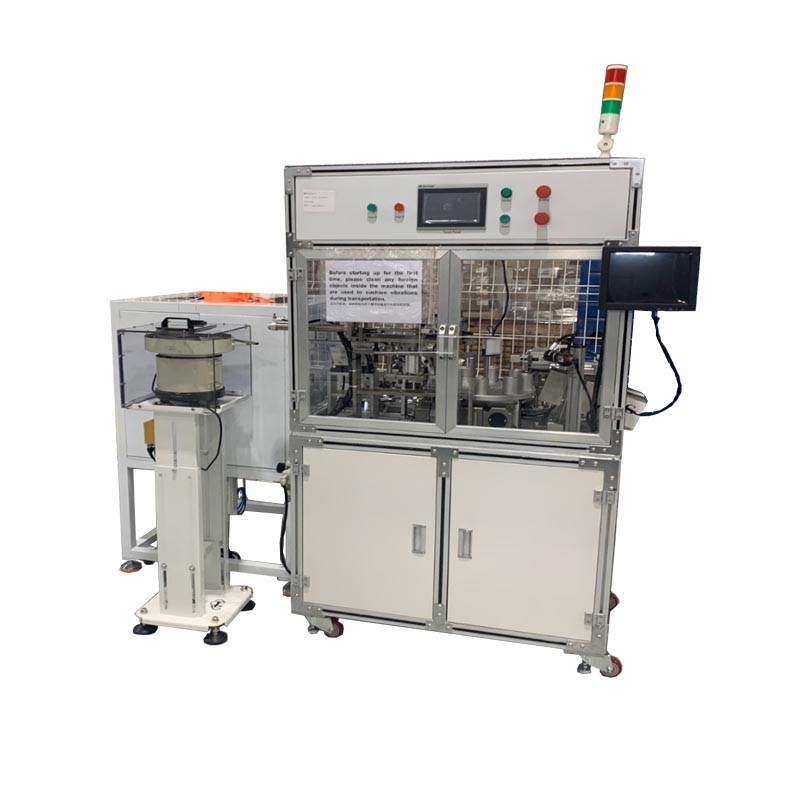

Automation O-ring and Plastic Core Assembly Machine

Application

Customization Automation O-ring and Plastic Core Assembly Machine is fully automatically operation mode.

It highly improves work efficiency and hommization.

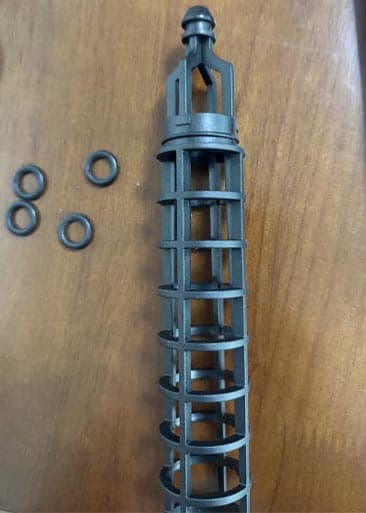

Application Samples

Key Features

• Automation operation: automatically loading,assembly and unloading.

• AB (Allen-Bradley) PLC and  HIM system ensure operation system steability.

• Reliable phenumatic parts:SMC cylinders.

• Easy operation to avoid complicated process.

• Doors safety interlock design.

• Three colors alarm indicator.




Basic Parameters

Machine Dimension: 1830*700*1720mm(include loading feeders)

Machine Weight: appr. 500KG(include 2 loading feeders)

Rotary Stage: 6 workpiece positions

Power Supply: 220V 50Hz( or 110V 60Hz)

Machine Power: 1000W

Plastic Core Feeder Power: 800W

O-ring Feeder Power: 500W

Work Mode: Automation

Machine Doors: Interlock safety sensors(Omr

Operation Language: EN/CN (optional another languages)

Machine Packing

Compliance to Solid Wood Packaging Materials (SWPM) Regulations:  The International Plant Protection

Convention(IPPC) and International Standards for Phytosanitary Measures no. 15 (ISPM's #15) guidelines

protect against insect infestation in packaging materials.

Warranty and After-sale Service

Warranty

Machine (except consumable parts like sensors) is one year warranty under normal operation,lifetime technical

support and service. Machine parts defect during warranty period, which will be sent to your end for replacement.

After-sale Service

If need any technical support,kindly contact us lively video call, phone call or email. email or phone call.

Oversea onsite service(optional): mutual communication for detail discussion.There could be extra fee(like travelling fee,insurance,commodity fee,etc.) result from the traveling.

Contact Us now and send us a Feedback for a personalized quote and further communication,thanks.
