Comprehensive Guide to Ultrasonic Welding

1. Understanding Ultrasonic Welding: Fundamentals and Material Compatibility

Ultrasonic welding is a precision joining technology that has revolutionized manufacturing across industries, from automotive to medical devices. At its core, this process leverages high-frequency mechanical vibrations (typically ranging from 15 kHz to 40 kHz, though specialized applications may use frequencies up to 70 kHz) to generate localized heat through molecular friction, creating a strong, seamless bond between compatible materials. Unlike traditional welding methods that rely on external heat sources or adhesives, ultrasonic welding achieves molecular fusion without introducing foreign substances, making it ideal for applications where purity, strength, and efficiency are non-negotiable.

1.1 The Science Behind Ultrasonic Welding

The success of ultrasonic welding hinges on three interconnected stages: energy conversion, heat generation, and bond formation—each governed by fundamental principles of acoustics and material science.

Energy Conversion

The process begins with an ultrasonic generator, which converts standard alternating current (AC) power (50/60 Hz) into high-frequency electrical energy. This energy is then transmitted to a transducer, a critical component that utilizes piezoelectric ceramics (materials like lead zirconate titanate, PZT) to convert electrical energy into mechanical vibrations. Piezoelectric materials exhibit a unique property: when an electric field is applied, they undergo rapid expansion and contraction, producing vibrations that match the frequency of the electrical input. The transducer’s design—including the number of piezoelectric elements and their arrangement—directly impacts vibration amplitude and energy efficiency, with modern transducers achieving conversion efficiencies of 90% or higher.

Heat Generation

Once generated, the mechanical vibrations travel through a booster (amplitude modifier) and horn (sonotrode) before reaching the workpiece. The key to heat generation lies in frictional energy dissipation at the joint interface. As the vibrations propagate through the top material (often referred to as the “sonic material”), they cause rapid, microscopic relative motion between the contacting surfaces of the two workpieces. This motion overcomes surface roughness and intermolecular forces, generating heat that raises the temperature of the material at the joint to its melting point (for thermoplastics) or a temperature where atomic diffusion can occur (for thin metals).

Notably, the heat is highly localized—typically confined to a 0.1–0.5 mm thick layer at the interface—minimizing thermal distortion of the surrounding material. This localization is critical for precision applications, such as medical device assembly, where dimensional accuracy is paramount.

Bond Formation

As the material melts, a controlled pressure (applied by the machine’s pneumatic or hydraulic system) forces the two workpieces together. During the cooling phase (known as the “hold time”), the molten material solidifies, forming a molecular-level bond that is often as strong as the base material itself. For thermoplastics, this bond is reinforced by the interdiffusion of polymer chains, while for metals, it involves the formation of metallic bonds at the interface. The entire process—from vibration initiation to bond solidification—typically takes just 0.1–1.0 seconds, making ultrasonic welding one of the fastest joining methods available.

1.2 Material Suitability

Ultrasonic welding is not a one-size-fits-all technology; its effectiveness depends on the material’s physical and chemical properties. The most commonly welded materials include:

Thermoplastics

Thermoplastics are the primary candidates for ultrasonic welding due to their ability to soften and melt when heated, then re-solidify upon cooling. Key factors influencing weldability include:

· Melting point: Materials with compatible melting points (within 50°C of each other) weld most effectively. For example, ABS (melting point ~105°C) pairs well with polycarbonate (melting point ~220°C) when processed with optimized parameters.

· Amorphous vs. semi-crystalline: Amorphous thermoplastics (e.g., ABS, polystyrene, PVC) are generally easier to weld due to their broad melting range and low shrinkage. Semi-crystalline thermoplastics (e.g., polyethylene, polypropylene, nylon) require higher energy inputs and precise parameter control, as their sharp melting points and high shrinkage can lead to joint defects if not managed properly.

· Density and stiffness: Higher-density or stiffer materials (e.g., polycarbonate, acetal) require greater amplitude and pressure to achieve sufficient friction, while softer materials (e.g., polyethylene) may deform under excessive force.

Thin Metals

Ultrasonic welding is also used for joining thin metal sheets (0.1–2.0 mm thick) and wires, particularly in aerospace and electronics applications. Suitable metals include aluminum, copper, nickel, and their alloys. The process relies on solid-state welding—no melting occurs, but atomic diffusion at the interface creates a bond. Metal welding typically uses lower frequencies (15–20 kHz) and higher amplitudes than plastic welding, as metals conduct vibrations more efficiently and require greater energy to achieve atomic diffusion.

Materials to Avoid

Certain materials are poorly suited for ultrasonic welding, including:

· Thermosetting plastics (e.g., epoxy, phenolic resins), which do not melt but decompose when heated.

· Materials with high damp

· e.g. properties (e.g., rubber, foam), which absorb vibrations rather than transmitting them to the joint.

· Thick or rigid metals (over 2.0 mm), which require impractically high energy inputs and are prone to cracking.

2. How an Ultrasonic Welding Machine Works: Components and Workflow

A modern ultrasonic welding machine is a sophisticated integration of electrical, mechanical, and pneumatic systems, designed to deliver precise vibrations, pressure, and timing. While machine designs vary by manufacturer and application, all systems share four core components, along with supporting subsystems for control and safety.

2.1 Core Components

1. Ultrasonic Generator

The generator is the “brain” of the machine, responsible for converting standard electrical power into high-frequency energy. Key features of a high-quality generator include:

· Frequency stability: Maintains the target frequency (±0.1 kHz) to ensure consistent vibration output, critical for avoiding equipment damage and achieving uniform welds.

· Power regulation: Adjusts output power (typically 100–3000 W) based on the material and joint size, with modern generators offering digital power control for precision.

· Mode selection: Allows operators to choose between manual, semi-automatic, or fully automatic operation, depending on production needs.

· Diagnostic tools: Monitors voltage, current, and frequency in real time, alerting operators to potential issues (e.g., generator overload, frequency drift).

2. Transducer

The transducer is a piezoelectric device that converts electrical energy into mechanical vibrations. Transducers are available in two main designs:

· Langevin transducer: Named after the French physicist Paul Langevin, this design uses a stack of piezoelectric ceramics sandwiched between two metal plates (front and back masses). The stack is preloaded with a bolt to enhance stability and vibration efficiency, making it suitable for high-power applications (500–3000 W).

· Flexural transducer: Uses a thin piezoelectric disk bonded to a metal diaphragm, producing lower amplitudes but higher frequencies (up to 70 kHz). This design is ideal for delicate applications, such as micro-welding medical catheters.

Transducers are frequency-specific—each is calibrated to operate at a fixed frequency (e.g., 20 kHz, 30 kHz)—and must be matched to the generator to avoid resonance issues.

3. Booster (Amplitude Modifier)

The booster is a cylindrical component that adjusts the amplitude of the vibrations generated by the transducer. Amplitude—measured in micrometers (µm)—is the maximum displacement of the vibration cycle and directly influences the energy delivered to the joint. Boosters are available in three configurations:

· Amplifying booster: Increases amplitude (e.g., 1:1.5, 1:2 ratio), suitable for hard materials or large joints.

· Attenuating booster: Reduces amplitude (e.g., 2:1 ratio), used for soft materials or delicate parts that might deform under high vibration.

· Neutral booster: Maintains the original amplitude (1:1 ratio), ideal for applications where the transducer’s native amplitude is sufficient.

The booster’s design relies on the principle of mechanical resonance—its length is a multiple of half the wavelength of the vibrations, ensuring efficient energy transfer. Like transducers, boosters are frequency-specific and must be compatible with the rest of the system.

4. Horn (Sonotrode)

The horn is the final component in the vibration transmission chain, responsible for transferring vibrations to the workpiece. Horns are typically made from hardened steel (H13), titanium, or aluminum, chosen for their high stiffness, wear resistance, and acoustic properties. Key considerations in horn design include:

· Shape customization: Horns are often machined to match the geometry of the workpiece, ensuring uniform vibration distribution across the joint. Common shapes include flat, cylindrical, stepped, and custom contoured horns.

· Amplitude uniformity: The horn’s design must ensure that the vibration amplitude is consistent at the contact surface—any variation can lead to uneven heating and weak joints.

· Resonance matching: The horn’s length is calibrated to resonate at the system’s operating frequency, maximizing energy transfer and minimizing heat buildup in the horn itself.

Horns are subject to wear over time, especially when welding abrasive materials (e.g., glass-filled plastics). Regular inspection and replacement are critical to maintaining weld quality.

2.2 Supporting Subsystems

Pneumatic System

Most ultrasonic welding machines use compressed air to apply the clamping pressure required for welding. The pneumatic system includes:

· Air filter-regulator-lubricator (FRL): Cleans, regulates, and lubricates the compressed air, preventing contamination and ensuring smooth operation of the cylinder.

· Cylinder: Applies controlled pressure (typically 0.5–10 bar) to the workpiece during welding and hold time. The cylinder’s stroke length is adjustable to accommodate different part heights.

· Pressure sensor: Monitors the applied pressure in real time, feeding data back to the control system to ensure consistency.

Control System

Modern machines feature digital control systems (often with touchscreen interfaces) that allow operators to:

· Set and store welding parameters (amplitude, pressure, weld time, hold time).

· Program multiple welding cycles for different parts.

· Monitor process data (e.g., weld force, vibration amplitude) for quality control.

· Integrate with automation systems (e.g., robots, conveyors) for high-volume production.

Safety System

Safety is a top priority in ultrasonic welding, given the high-frequency vibrations and mechanical forces involved. Key safety features include:

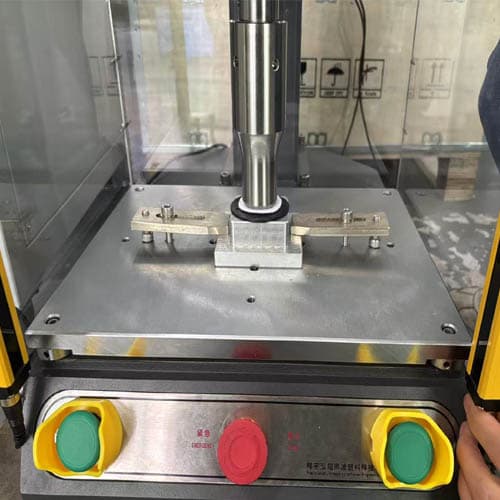

· Two-hand controls: Require the operator to press two buttons simultaneously to initiate the welding cycle, preventing accidental activation.

· Emergency stop button: Halts all machine operations immediately in case of a hazard.

· Sound enclosure: Reduces noise levels (which can exceed 85 dB during operation) to protect operators’ hearing.

· Interlock system: Prevents the machine from operating if the safety enclosure is open.

2.3 Complete Process Workflow

The ultrasonic welding process follows a standardized sequence of steps, from setup to part removal:

1. Power-Up and System Check: The operator turns on the machine, and the control system performs a self-diagnostic check of the generator, transducer, and pneumatic system.

1. Fixture Preparation: The workpiece is placed in a custom fixture, which holds the parts in precise alignment. Fixtures are critical for ensuring consistent joint positioning—poor alignment can lead to weak welds or part damage.

1. Vibration Initiation: When the cycle is activated (via two-hand controls or automation), the generator sends high-frequency power to the transducer, which converts it into mechanical vibrations.

1. Amplitude Adjustment: The booster modifies the vibration amplitude to the desired level, based on the material and joint requirements.

1. Energy Delivery: The horn transmits the vibrations to the top workpiece, generating friction and heat at the joint interface.

1. Pressure Application: The pneumatic cylinder applies the set pressure, forcing the molten material at the joint to intermix.

1. Hold Time: The pressure is maintained as the molten material cools and solidifies, forming a strong bond.

1. Cycle Completion: The cylinder retracts, and the operator or automation system removes the welded part for inspection.

The entire cycle typically takes 0.5–2.0 seconds (including hold time), making ultrasonic welding ideal for high-volume production.

3. Step-by-Step Operating Guide: Setup, Tuning, and Parameter Optimization

Achieving consistent, high-quality welds requires careful setup, precise frequency tuning, and optimized process parameters. This section provides a detailed, actionable guide for operators, with a focus on best practices and common pitfalls.

3.1 Installation and Setup

Proper installation is the foundation of reliable ultrasonic welding. Follow these steps to ensure the machine operates safely and efficiently:

3.1.1 Machine Placement

· Surface Requirements: Place the machine on a sturdy, level surface (e.g., a concrete floor or steel workbench) to minimize vibration transmission and ensure stability. Uneven surfaces can cause misalignment and reduce weld quality.

· Ventilation Clearance: Maintain a minimum clearance of 150 mm around the machine, particularly around the generator and transducer, to allow for adequate heat dissipation. Overheating can damage electronic components and reduce machine lifespan.

· Environmental Conditions: Operate the machine in a clean, dry environment with a temperature range of 15–35°C and relative humidity ≤80%. Dust, moisture, or extreme temperatures can interfere with electrical components and pneumatic systems.

3.1.2 Electrical Safety

· Grounding: Properly ground the machine using a dedicated ground wire (resistance ≤4 ohms) to prevent electric shock. Avoid sharing the ground with other equipment, as this can cause electrical interference.

· Power Supply: Ensure the power supply matches the machine’s specifications (voltage, current, frequency). Use a surge protector to shield the generator from voltage spikes, which can damage sensitive electronics.

· Cable Management: Route power and signal cables away from moving parts and heat sources to prevent damage. Avoid kinking or stretching cables, as this can disrupt signal transmission.

3.1.3 Component Assembly

· Horn and Transducer Attachment:

1. Clean the contact surfaces of the transducer, booster, and horn with isopropyl alcohol to remove dirt, oil, or debris—contamination can reduce vibration transmission and cause overheating.

1. Align the components using the manufacturer’s alignment pins to ensure coaxiality (misalignment of >0.1 mm can cause uneven vibrations and horn damage).

1. Fasten the components with a torque wrench, following the manufacturer’s recommended torque settings (typically 20–30 N/m for steel horns, 15–25 N/m for aluminum horns). Over-tightening can damage piezoelectric elements, while under-tightening can cause vibration loss.

· Air Supply Connection:

1. Connect an external air compressor (minimum pressure of 6 bar) to the machine’s FRL unit.

1. Adjust the regulator to the desired working pressure (typically 2–6 bar, depending on the application).

1. Check for air leaks using a soapy water solution—leaks can reduce pressure consistency and increase energy consumption.

3.1.4 Fixture Installation

· Fixture Alignment: Mount the fixture to the machine’s base, ensuring it is parallel to the horn’s contact surface. Use a dial indicator to verify alignment (tolerance ≤0.05 mm).

· Part Retention: Ensure the fixture holds the parts securely without damaging them. Use soft materials (e.g., rubber, foam) for delicate parts to prevent scratching or deformation.

· Accessibility: Design the fixture to allow easy loading and unloading of parts, either manually or via automation.

3.2 Frequency Tuning (Acoustic Testing)

Frequency tuning is a critical step that ensures the machine operates at its resonant frequency— the frequency at which the transducer, booster, horn, and workpiece vibrate most efficiently. Operating off-resonance can lead to reduced energy transfer, increased noise, and premature component failure.

3.2.1 Tuning Procedure

1. Prepare the Machine: Switch the machine to “manual” mode and ensure the horn is not in contact with any objects (including the fixture or workpiece).

1. Initiate Acoustic Test: Press and hold the acoustic test button for 1–3 seconds (do not hold for longer than 5 seconds, as this can overheat the transducer).

1. Adjust Frequency: While monitoring the amplitude meter on the control panel, turn the frequency tuner (a potentiometer or digital control) to find the point where the amplitude reading is minimized. The optimal resonance is indicated by the lowest possible amplitude (ideally ≤1.2 µm for plastic welding, ≤0.8 µm for metal welding).

1. Verify Consistency: Release the acoustic test button, wait 10 seconds, and repeat the test to ensure the resonance point is stable. If the amplitude fluctuates by more than 0.2 µm, check for component misalignment or contamination.

1. Document Settings: Record the tuned frequency and amplitude for future reference.

3.2.2 When to Retune

Frequency tuning must be repeated in the following scenarios:

· After changing the horn, booster, or transducer.

· When switching to a new workpiece material or design.

· If the machine has been moved or jarred.

· If weld quality deteriorates (e.g., incomplete bonds, excessive flash).

3.3 Welding Parameters: Key Variables and Optimization

Ultrasonic welding parameters are interdependent—adjusting one variable (e.g., amplitude) will require changes to others (e.g., pressure, time) to maintain optimal results. Below is a detailed breakdown of the key parameters and how to optimize them for different applications.

3.3.1 Core Parameters

1. Amplitude (µm)

· Definition: The maximum displacement of the horn’s vibration cycle, directly influencing the energy delivered to the joint.

· Impact: Higher amplitude increases friction and heat generation
