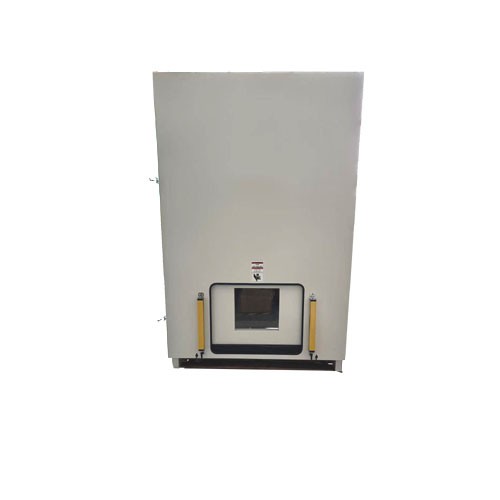

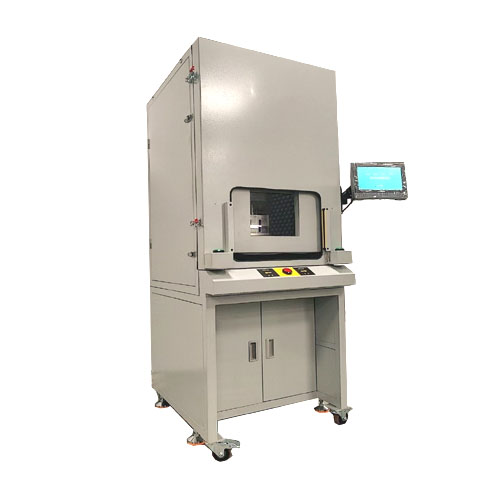

Best Acoustic Enclosure for Ultrasonic Welding Machine

CustomAcoustic Enclosure Specifications (Based on Customer Requirements):

Main Materials:

Base: Welded from 40*40*4mm square tubes. The tabletop is made of steel plate with a thickness of 6mm or greater.

Main Frame: Welded from 40*40*4mm angle iron.

Wall Panels: Made from 1.5mm steel plate, bent to form a box structure. The interior and exterior layers are filled with

 imported sound-absorbing cotton, 30mm thick per layer, resulting in a total thickness of 60mm.

Viewing Window: Constructed from double-layer acrylic (plexiglass) or polycarbonate (often generically referred to as organic glass).

Lifting Mechanism: The sliding hopper/container has a lift height of 350mm, powered by a high-quality imported air cylinder.

Overall Dimensions: Approximately 2340mm (L) x 936mm (W) x 760mm (H). The exterior appearance is aesthetically pleasing.

Advanced Structure: Key components utilize imported parts (e.g., air cylinders from Taiwan, imported sound-absorbing cotton, etc.).

Internal Structure: Features a hollow, double-layer sound insulation structure internally. High-quality sound absorption material is selected.

Movable Door Safety: Utilizes a pneumatic control circuit design for the movable door. Allows for adjustable descent speed and end-point

deceleration control, effectively preventing injuries caused by the door pressing down on personnel.

Sound Insulation Effect: Achieves a noise reduction of approximately 85 dB (This likely means reducing external noise levels to around 85 dB,

or achieving an 85 dB noise reduction from the source level. Clarification is recommended: e.g., "Internal noise level reduced to approx. 85 dB"

or "Sound insulation performance of approx. 85 dB reduction").

Safety and Installation:

Protective Light Curtain: A safety light curtain will be installed and synchronized with the machine's operation.

Installation & Commissioning: On-site installation and debugging services are included.

Computer Configuration:

Model: Lenovo Yangtian M4000Q

Operating System: Genuine Windows 10 or Windows 11

Language: Support for Chinese and English languages.
