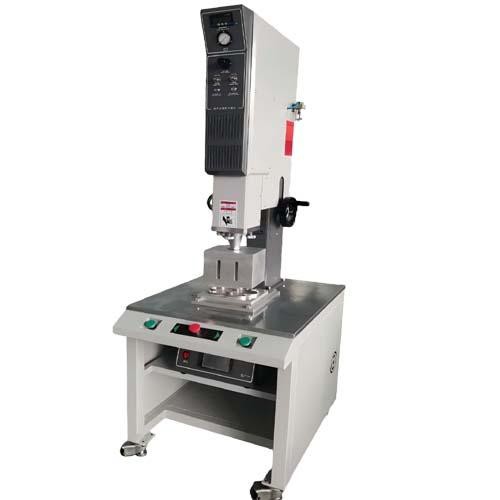

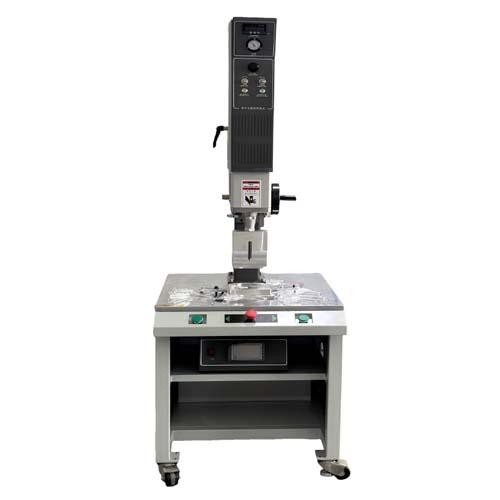

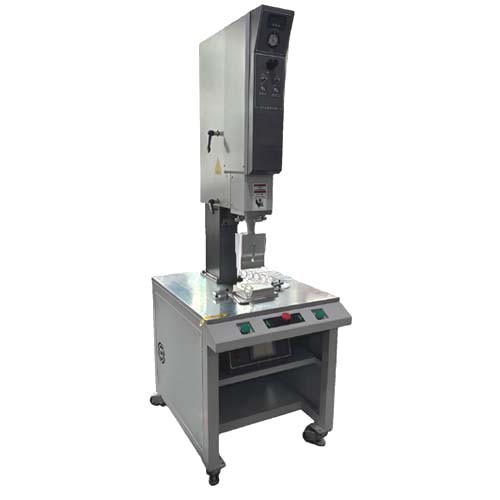

15Khz 3200W  Ultrasonic Welding Machine

Operation Video

Application

This ultrasonic welding machine is used for sealing high precision thermoplastic components.The machine is equipped with slide rail to ensure stable movement. Parameters can be adjusted by HMI and recording all welding parameters.

Basic Parameter

Model: TEC - 1532J

Power: 3200W

Frequency:  15Khz

Welding Unit Stroke: 0-300mm

Cylinder Stroke: 75mm(adjustable 13mm)

Fine-tuning: 0-10mm

Touch Panel: 4.3"

Air Pressure: 0.15Mpa - 0.6Mpa

Power Supply: 220V 50Hz 15A (Optional 110V 60Hz)

Welding Horn: 7075 Aluminum Alloy(Optional: Titanium Alloy)

Machine Dimension: 840*650*1930mm

Machine Weight:220KG

Ultrasonic Generator: 450*320*150mm

Generator Weight: 8KG

Free Accessories(1pc pipe with fast joint, 1set Hex key, 1pc special wrench,2pcs fixtures)

Machine Packing

Compliance to Solid Wood Packaging Materials (SWPM) Regulations:  The International Plant Protection

Convention(IPPC) and International Standards for Phytosanitary Measures no. 15 (ISPM's #15) guidelines

protect against insect infestation in packaging materials.

Warranty and After-sale Service

Warranty

Machine (except consumable parts like sensors) is one year warranty under normal operation,

lifetime technical support and service. Machine parts defect during warranty period, which

will be sent to your end for replacement.

After-sale Service

If need any technical support,kindly contact us lively video call, phone call or email. email or phone call.

Oversea onsite service(optional): mutual communication for detail discussion. There could be extra fee

(like travelling fee,insurance,commodity fee,etc.) result from the traveling.
