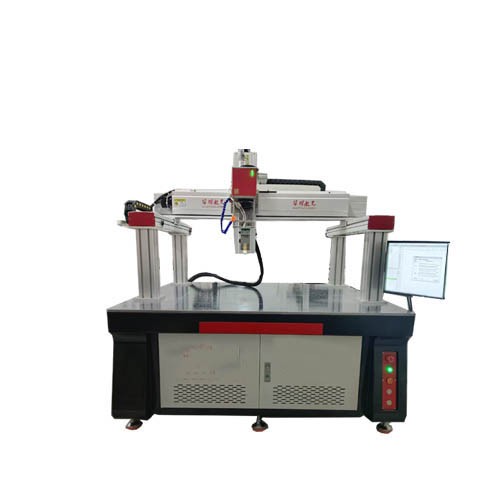

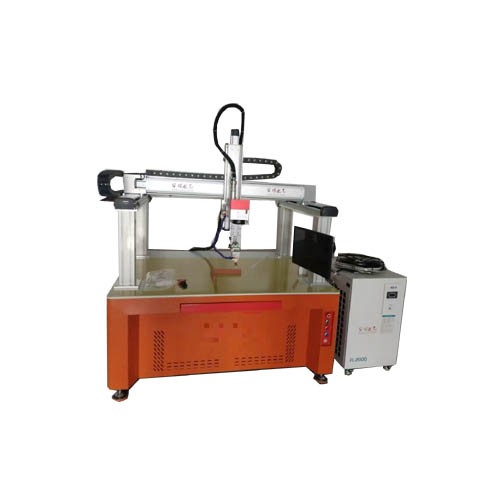

2000W Galvanometer Laser Welding Machine for Battery Cells

Application

This laser welding equipment is primarily designed for series and parallel laser welding of battery cells

in the battery industry. Eeasy operation, PLC and human machine interface,auto and manual operation.

Basic Parameter

Model:TEC-T2000

Output Power: 2000W

Laser Wavelength: 1080nm

Total Power Consumption: 5KW

Power Adjustment Range: 10-100%

Working Range: 150MM

Positioning Accuracy: ±0.02mm

Welding Head Type: Galvanometer Welding Head

Galvanometer Positioning Speed: 2m/s

I/O Interface: Input/Output I/O RS232

Indicator Method: Red Light

Cooling Method: Built-in Water Chiller

Protective Gas: Equipped with Protective Gas Interface

Ambient Temperature (Recommended): 5℃-35℃

Power Requirements: AC220V-50HZ

Key Features

1.1 It adopts advanced fiber laser as the light source, offering excellent beam quality, high welding speed,

     and producing strong and aesthetically pleasing welds.

1.2 Controlled by an industrial PC, it can weld any planar graphics composed of points, straight lines,

      circles, and curves.

1.3 Easy to operate, it meets the laser welding requirements for various conventional batteries, including

      pack assembly and nickel tab welding.

1.4 With high electro-optical conversion efficiency and low energy consumption—only 1/10 of conventional

       welding machines—it significantly reduces processing costs for users over long-term use.

1.5 The equipment boasts high reliability, requires minimal maintenance, and supports 24-hour continuous stable

      operation, meeting the demands of industrial mass production.

1.6 The weld spot diameter can be adjusted as required, with a small heat-affected zone that prevents deformation

      of precision products.

Warranty and After-sale Service

Warranty

Machine (except consumable parts like sensors) is one year warranty under normal operation,

lifetime technical support and service. Machine parts defect during warranty period, which will be sent to

your end for replacement.

After-sale Service

If need any technical support,kindly contact us lively video call, phone call or email. email or phone call.

Oversea onsite service(optional): mutual communication for detail discussion.There could be extra fee

(like travelling fee,insurance,commodity fee,etc.) result from the traveling.
